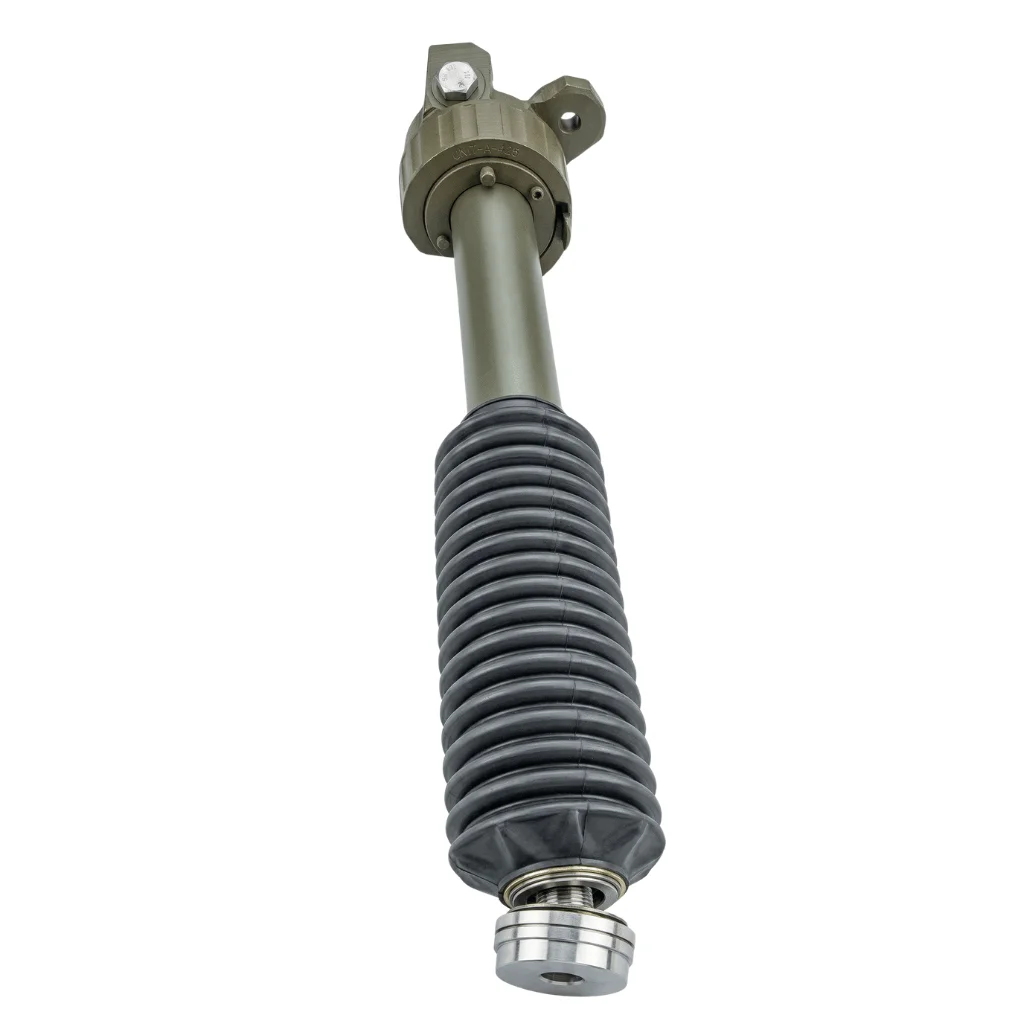

Actuator with Gear Box
The Actuator with Gear Box provides a streamlined, single-unit solution for lifting and positioning heavy defense equipment. The integrated layout removes external transmission inefficiencies, drastically increasing structural rigidity and response times.
It boasts a substantial 1450mm stroke length, ensuring a complete, smooth travel cycle validated through exhaustive 50-cycle pre-tests. A built-in manual cranking mechanism guarantees fail-safe operation under 10 minutes even when deployed without external power.
The assembly is engineered for heavy-duty resilience, weighing approximately 250 kg to maintain structural stability during load-bearing operations. With a closed length of 2000mm including the landing foot, and integrated top and bottom limit switches, the system ensures both a wide operational reach and fail-safe travel boundaries for high-precision defense deployments.
Specifications
| Sl. No. | Description / Parameter | Specification / Value |
|---|---|---|
| 1 | Closed Length (including landing foot) | 2000 ± 25 mm |
| 2 | Stroke Length | 1450 ± 25 mm |
| 3 | Operation of limit switches | Top limit: OK / Bottom limit: OK |
| 4 | Manual Cranking for 1450mm stroke (without load) | Less than 10 min |
| 5 | Operation of jack to full travel 50 cycles (without load) | Smooth operation |
| 6 | Weight of jack assembly | 250 kg |
