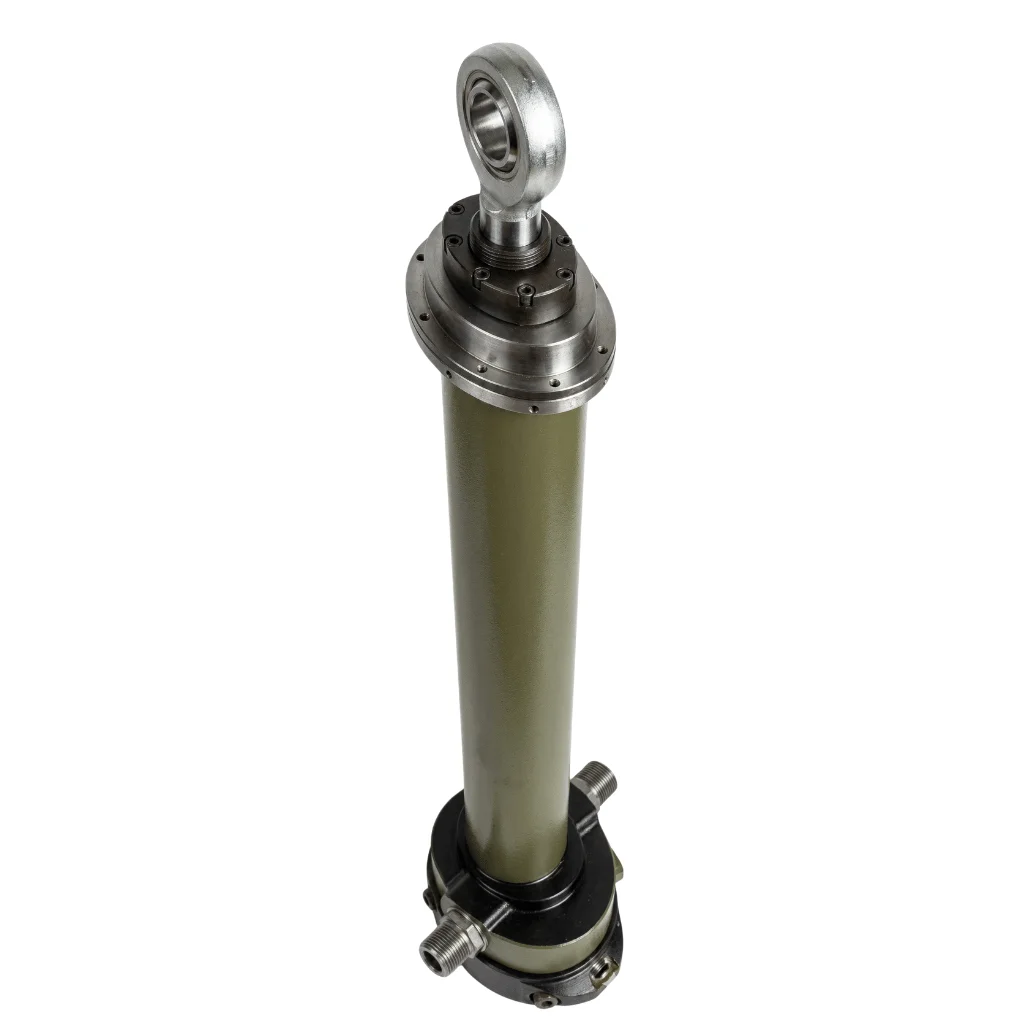

Elevation Actuator

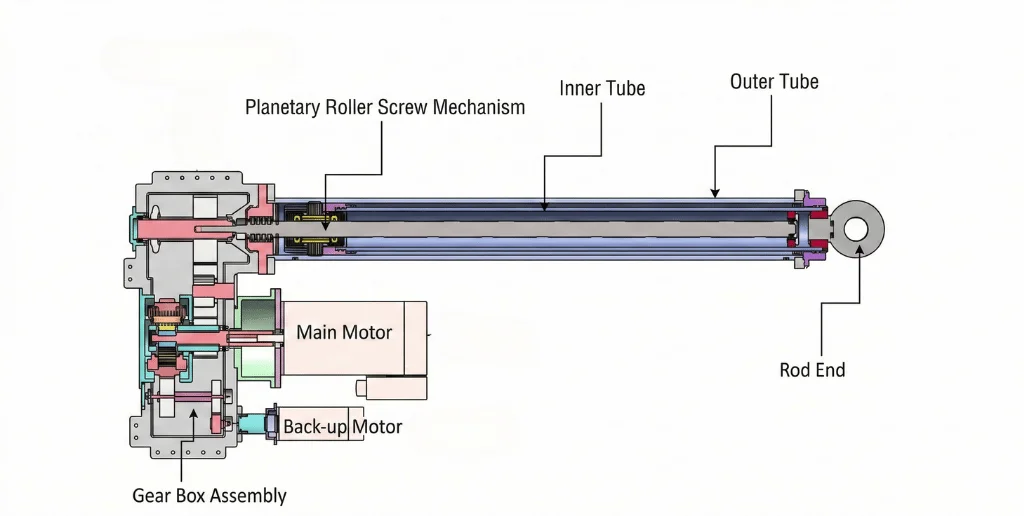

The Elevation Actuator is an Electromechanical Planetary Roller Screw Actuator with an integrated drive gear box, built to sustain a maximum static load of 163 kN (single actuator) and a mean load of 97.3 kN. It delivers a 1470 mm stroke with a lead accuracy of G5.
The actuator supports two drive paths: through the Main Motor with a total gear ratio of 7:1, and through the PAHM Motor with a total gear ratio of 92:1. It is rated for all-weather operation with a minimum life expectation of 20 years at 90% reliability factor.
Designed for seamless mechanical integration, the system utilizes a trunnion mounting configuration with clevis end fittings. It features a sophisticated 6-point lubrication system—with 4 points on the actuator ram and 2 on the gear box—using long-time PD 00 lubricant to ensure sustained performance. With an overall efficiency of 75% and the capability for 30 minutes of continuous operation, the actuator is engineered to endure 95% relative humidity and temperatures as low as -20°C, making it a reliable solution for high-duty defense platform elevation.
Specifications
Specifications
| Type of Actuator | Electromechanical Planetary Roller Screw Actuator with integrated drive gear box |
| Max Static Load | 163 kN (Single Actuator) |
| Mean Load | 97.3 kN |
| Stroke | 1470 mm |
| Actuator Close Length | 2272 mm (Trunnion center to Rod End center) |
| Actuator Open Length | 3742 mm |
| Lead Accuracy | G5 |
| Drive Gear Box (Through Main Motor) | 1st Stage Planetary: GR = 4:1 | 2nd Stage Helical: GR = 1.46:1 | 3rd Stage Helical: GR = 1.2:1 | Total GR from main motor to actuator = 7:1 |
| Drive Gear Box (Through PAHM Motor) | 1st Stage Planetary: GR = 14:1 | 2nd Stage Helical: GR = 1.5:1 | 3rd Stage Helical: GR = 1.875:1 | 4th Stage Solar: GR = 1.333:1 | 5th Stage Helical: GR = 1.46:1 | 6th Stage Helical: GR = 1.2:1 | Total GR from PAHM motor to actuator = 92:1 |
| Gear Box Efficiency | 90% |
| Overall Actuator Efficiency | 75% |
| End Fitting | Clevis end |
| Mounting Type | Trunnion |
| Lubrication | Long time lubrication PD 00 |
| Lubrication Points | 4 on Actuator ram & 2 on Gear Box |
| Ambient Temperature (Operating) | -20°C to +55°C |
| Ambient Temperature (Non-Operating) | -30°C to +70°C |
| Relative Humidity | 95% at +45°C |
| Operation | All weather condition |
| Operation Duty | Max. Continuous operation for 30 min |
| Min Life Expectation | 20 yrs @ 90% reliability factor |
| Inner Tube Length | 1616.4 mm |
| Outer Tube Length | 1775.4 mm |
| Gear Box Dimension | 872 mm (L) × 337 mm (W) × 405 mm (H) |
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
