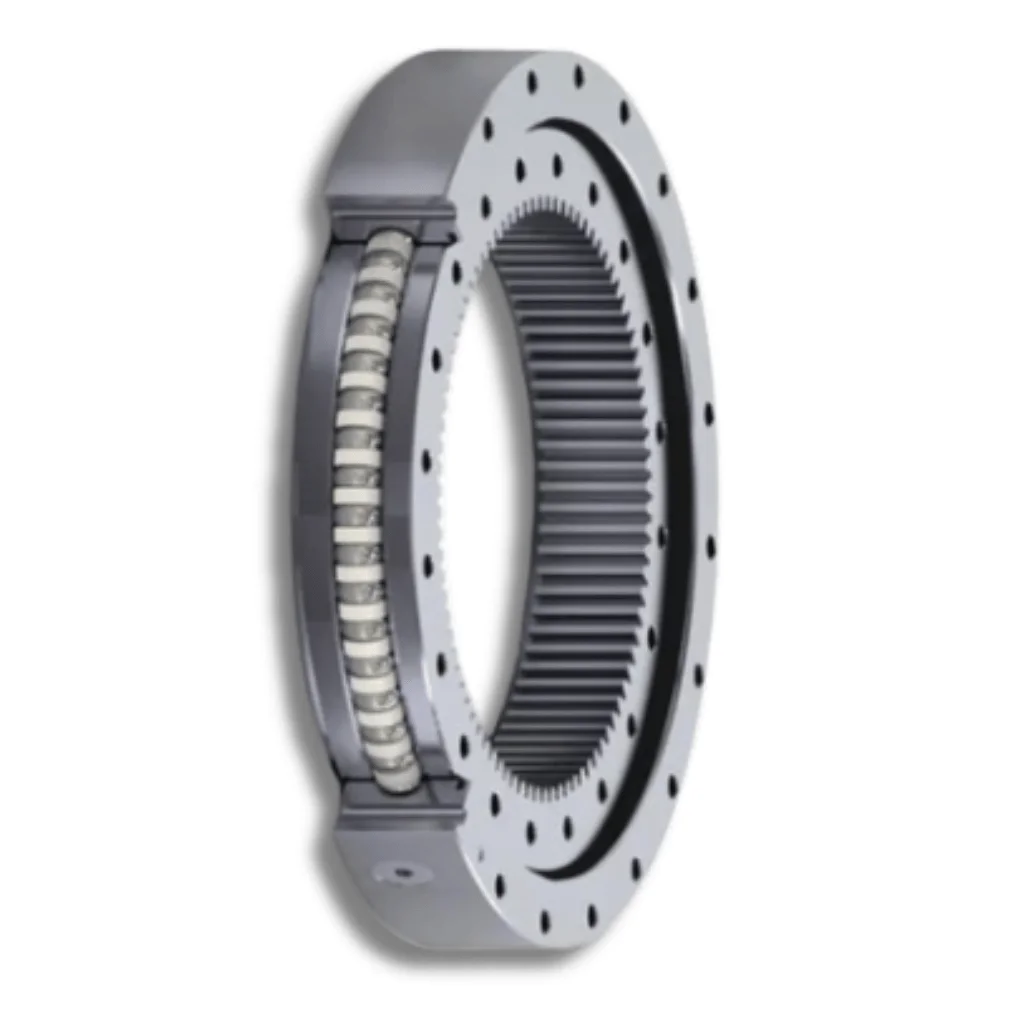

Crossed Cylindrical Roller Slewing Bearings (External Gears)

PMK Crossed Cylindrical Roller Slewing Bearings with External Gear are engineered for heavy-duty rotation with integrated external gearing for power transmission. They deliver high torque, precise positioning and smooth motion in compact assemblies.

Key benefits

External gear integration simplifies rotary drive design and power transmission.
High torque transmission and positioning accuracy.
Excellent rigidity and vibration resistance from crossed-roller construction.
Compact combined bearing-and-gear solution for limited-space assemblies.
Suitable for both continuous and intermittent rotation under load.

Applications

Construction equipment and crane slewing drives.
Turntables, automation systems, and wind-drive assemblies.
Industrial robots and rotary manipulators.
Machine tool indexing tables and large rotating structures.

Request Quote (RFQ)

Specifications

Boundary dimensions (mm)			Mount dimensions (mm)						Structure dimensions (mm)						Gear constants (mm)					Designations	Basic load ratings (kN) Coa	Mass (kg)
d	D	H	D₁	D₂	n₁	n₂	φ1	φ2	D₃	d₁	H₁	h	n₃	φ3	m	Da	Z	b	x	Designations	Basic load ratings (kN) Coa	Mass (kg)
398	602	75	566	434	20	20	18	18	499	501	65	10	4	M10×1	5	630	123	60	0.5	111.25.500.**	1040	80
398	602	75	566	434	20	20	18	18	499	501	65	10	4	M10×1	6	630	120	60	0.5	112.25.500.**	1040	80
458	662	75	626	494	20	20	18	18	558.5	561.5	65	10	4	M10×1	5	690	135	60	0.5	111.25.560.**	1160	90
458	662	75	626	494	20	20	18	18	558.5	561.5	65	10	4	M10×1	6	690	112	60	0.5	112.25.560.**	1160	90
528	732	75	696	564	24	24	18	18	628.5	631.5	65	10	4	M10×1	6	774	126	60	0.5	111.25.630.**	1300	100
528	732	75	696	564	24	24	18	18	628.5	631.5	65	10	4	M10×1	8	776	94	60	0.5	112.25.630.**	1300	100
608	812	75	776	644	24	24	18	18	708.5	711.5	65	10	4	M10×1	6	852	139	60	0.5	111.25.710.**	1490	110
608	812	75	776	644	24	24	18	18	708.5	711.5	65	10	4	M10×1	8	856	104	60	0.5	112.25.710.**	1490	110
678	922	82	878	722	30	30	22	22	798.5	801.5	72	10	6	M10×1	8	968	118	65	0.5	111.28.800.**	1850	170
778	1022	82	978	822	30	30	22	22	898.5	901.5	72	10	6	M10×1	8	1064	130	65	0.5	111.28.900.**	2090	190
878	1122	82	1078	922	36	36	22	22	998.5	1001.5	72	10	6	M10×1	10	1190	116	65	0.5	111.28.1000.**	2330	210
998	1242	82	1198	1042	36	36	22	22	1118	1122	72	10	6	M10×1	10	1300	127	65	0.5	111.28.1120.**	2620	230
1110	1390	91	1337	1163	40	40	26	26	1248	1252	81	10	6	M10×1	12	1452	118	75	0.5	111.32.1250.**	3210	350
1260	1540	91	1487	1313	40	40	26	26	1398	1402	81	10	6	M10×1	12	1608	131	75	0.5	111.32.1400.**	3580	400
1460	1740	91	1687	1513	45	45	26	26	1598	1602	81	10	8	M10×1	14	1820	127	75	0.5	111.32.1600.**	4120	440
1660	1940	91	1887	1713	45	45	26	26	1798	1802	81	10	8	M10×1	14	2016	141	75	0.5	111.32.1800.**	4600	500
1825	2178	112	2110	1891	48	48	33	33	1998	2002	100	12	8	M10×1	16	2272	139	90	0.5	111.40.2000.**	6860	900
2065	2418	112	2350	2131	48	48	33	33	2237.5	2242.5	100	12	8	M10×1	16	2496	153	90	0.5	111.40.2240.**	7640	1000
2325	2678	112	2610	2391	56	56	33	33	2497.5	2502.5	100	12	8	M10×1	18	2772	151	90	0.5	111.40.2500.**	7970	876
2625	2978	112	2910	2691	56	56	33	33	2797.5	2802.5	100	12	8	M10×1	18	3078	168	90	0.5	111.40.2800.**	9600	1250
2922	3376	134	3286	3014	56	56	45	45	3147.5	3152.5	122	12	8	M10×1	20	3480	171	110	0.5	111.50.3150.**	13800	2150
2922	3376	134	3286	3014	56	56	45	45	3147.5	3152.5	122	12	8	M10×1	22	3476	155	110	0.5	112.50.3150.**	13800	2150
3322	3776	134	3686	3414	56	56	45	45	3547.5	3552.5	122	12	8	M10×1	20	3880	191	110	0.5	111.50.3550.**	15700	2470
									3547.5	3552.5	122	12	8	M10×1	22	3894	174	110	0.5	112.50.3550.**	15700	2470
									3548	3552	122	12	8	M10×1	20	3880	191	110	0.5	111.52.3550.12	14750	2464
3772	4226	134	4136	3864	60	60	45	45	3997.5	4002.5	122	12	10	M10×1	22	4334	194	110	0.5	111.50.4000.**	17600	2800
3772	4226	134	4136	3864	60	60	45	45	3997.5	4002.5	122	12	10	M10×1	25	4350	171	110	0.5	112.50.4000.**	17600	2800
4272	4726	134	4636	4364	60	60	45	45	4497.5	4502.5	122	12	10	M10×1	22	4940	217	110	0.5	111.50.4500.**	19800	3100
4272	4726	134	4636	4364	60	60	45	45	4497.5	4502.5	122	12	10	M10×1	25	4850	191	110	0.5	112.50.4500.**	19800	3100
