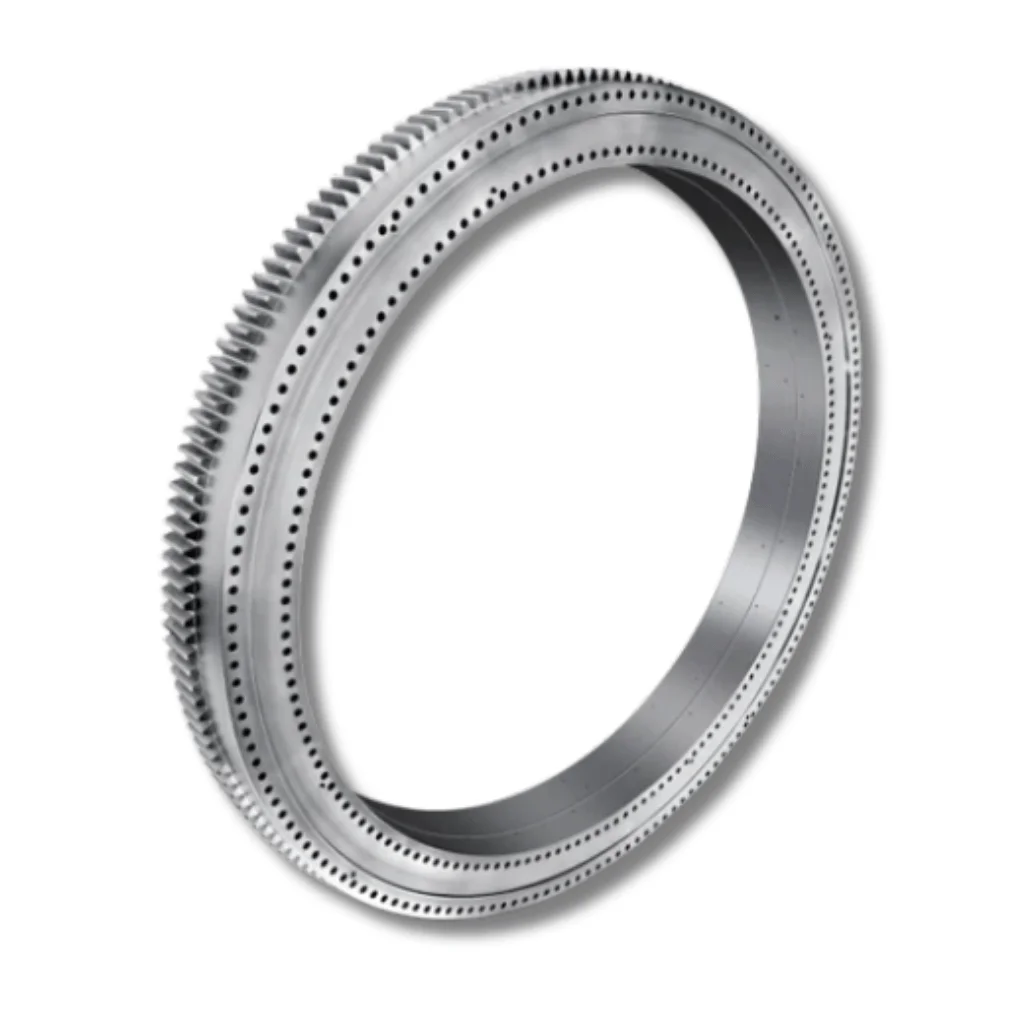

Yaw Bearing and Blade Bearings (External Gear)

PMK Yaw and Blade Bearings with External Gear are designed for high torque transmission and heavy-duty rotation in wind turbines and large-scale machinery. The external gear arrangement enables simple drive integration, efficient torque transfer, and easy maintenance access while delivering high structural rigidity and reliable rotation.

Key benefits

High torque transmission via external gear design.
Excellent load-carrying capacity and structural rigidity.
Smooth, precise motion under variable wind or mechanical loads.
Easy drive engagement and service accessibility.
Durable surface treatment for outdoor and offshore conditions.

Applications

Wind turbine yaw and blade systems.
Offshore cranes, radar, and large turntables.
Renewable energy and heavy rotating installations.
Construction and industrial machinery with gear-driven rotation.

Request Quote (RFQ)

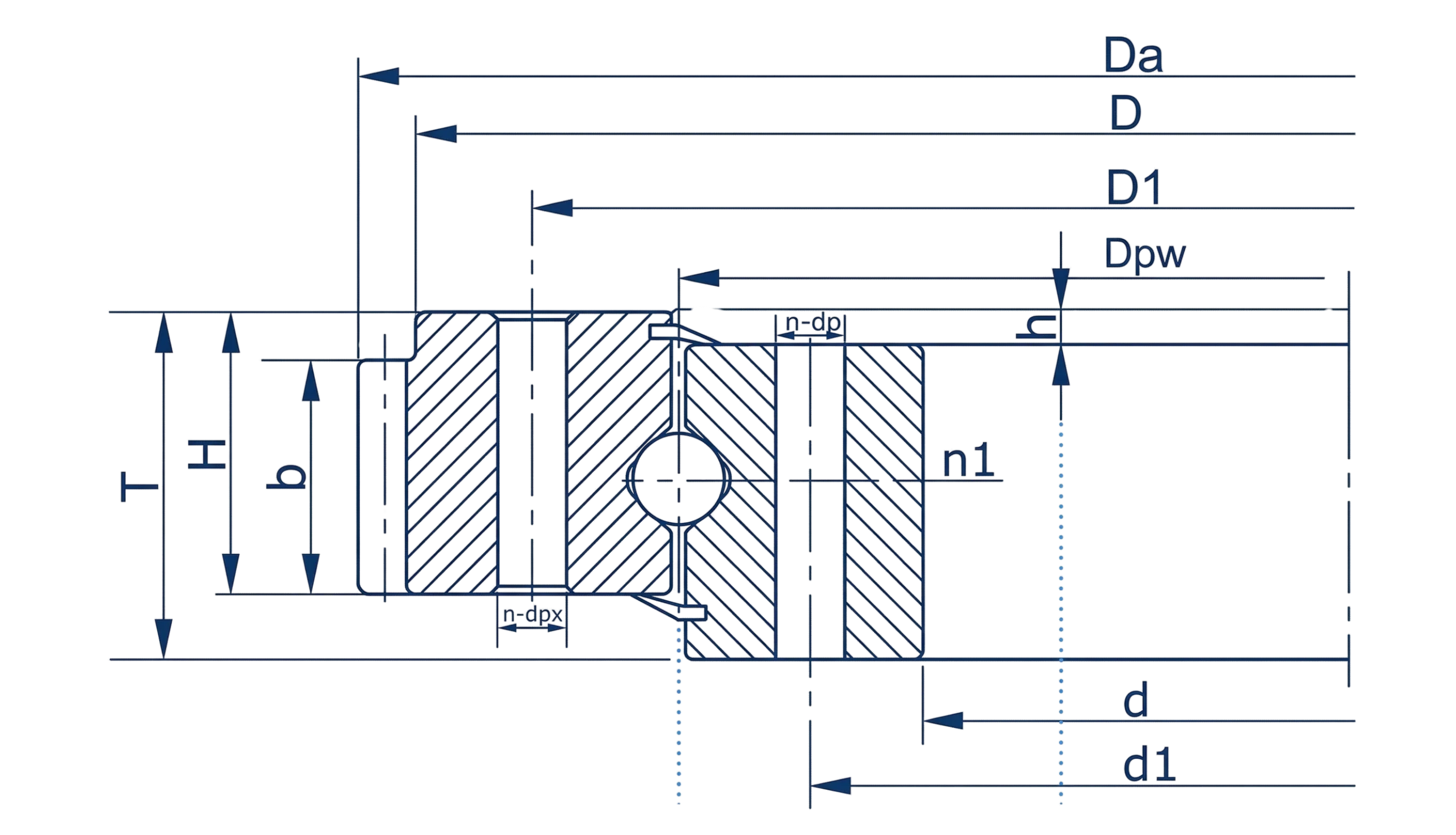

Specifications

Boundary dimensions (mm)					Mount dimensions (mm)			Number of holes		Gear parameters				Designation
d	D	T	H	h	D₁	d₁	d_n	n	n₁	m	D_a (mm)	z	b (mm)	Designation
458	662	80	70	10	626	494	18	20	4	5	689	135	60	011.30.560
458	662	80	70	10	626	494	18	20	4	6	688.8	112	60	012.30.560
528	732	80	70	10	696	564	18	24	4	6	772.8	126	60	011.30.630
528	732	80	70	10	696	564	18	24	4	8	774.4	94	60	012.30.630
608	812	80	70	10	776	644	18	24	4	6	850.8	139	60	011.30.710
608	812	80	70	10	776	644	18	24	4	8	854.4	104	60	012.30.710
678	922	100	90	10	878	722	22	30	6	8	966.4	118	80	011.40.800.12
678	922	100	90	10	878	722	22	30	6	10	968	94	80	012.40.800
778	1022	100	90	10	978	822	22	30	6	8	1062.4	130	80	011.40.900
778	1022	100	90	10	978	822	22	30	6	10	1068	104	80	012.40.900
878	1122	100	90	10	1078	922	22	36	6	10	1188	116	80	011.40.1000
878	1122	100	90	10	1078	922	22	36	6	12	1185.6	96	80	012.40.1000
998	1242	100	90	10	1198	1042	22	36	6	10	1298	127	80	011.40.1120
998	1242	100	90	10	1198	1042	22	36	6	12	1305.6	106	80	012.40.1120
1110	1390	110	100	10	1337	1163	26	40	5	12	1449.6	118	90	011.45.1250
1110	1390	110	100	10	1337	1163	26	40	5	14	1453.2	101	90	012.45.1250
1140	1480	126	113	13	1400	1200	26	60	5	10	-	-	100	011.50.1300
1140	1480	126	113	13	1400	1200	26	60	5	12	-	-	100	012.50.1300
1260	1540	110	100	10	1487	1313	26	40	5	12	1605.6	131	90	011.45.1400
1260	1540	110	100	10	1487	1313	26	40	5	14	1607.2	112	90	012.45.1400
1460	1740	110	100	10	1687	1513	26	45	5	14	1817.2	127	90	011.45.1600
1460	1740	110	100	10	1687	1513	26	45	5	16	1820.8	111	90	012.45.1600
1660	1940	110	100	10	1877	1713	26	45	5	14	2013.2	141	90	011.45.1800
1660	1940	110	100	10	1877	1713	26	45	5	16	2012.8	123	90	012.45.1800
1825	2178	144	132	12	2110	1891	33	48	8	16	2268.8	139	120	011.60.2000
1825	2178	144	132	12	2110	1891	33	48	8	18	2264.4	123	120	012.60.2000
2065	2418	144	132	12	2350	2131	33	48	8	16	2492.8	153	120	011.60.2240
2065	2418	144	132	12	2350	2131	33	48	8	18	2498.4	136	120	012.60.2240
2325	2678	144	132	12	2610	2391	33	56	8	18	2768.4	151	120	011.60.2500
2325	2678	144	132	12	2610	2391	33	56	8	20	2776	136	120	012.60.2500
2625	2987	144	132	12	2910	2691	33	56	8	18	3074.4	168	120	011.60.2800
2625	2987	144	132	12	2910	2691	33	56	8	20	3076	151	120	012.60.2800
2922	3376	174	162	12	3286	3014	45	56	8	20	3476	171	150	011.75.3150
2922	3376	174	162	12	3286	3014	45	56	8	22	3471.6	155	150	012.75.3150
3322	3776	174	162	12	3686	3414	45	56	8	20	3876	191	150	011.75.3550
3322	3776	174	162	12	3686	3414	45	56	8	22	3889.6	174	150	012.75.3550
3772	4226	174	162	12	4136	3864	45	60	10	22	4329.6	194	150	011.75.4000
3772	4226	174	162	12	4136	3864	45	60	10	25	4345	171	150	012.75.4000
