XL-160

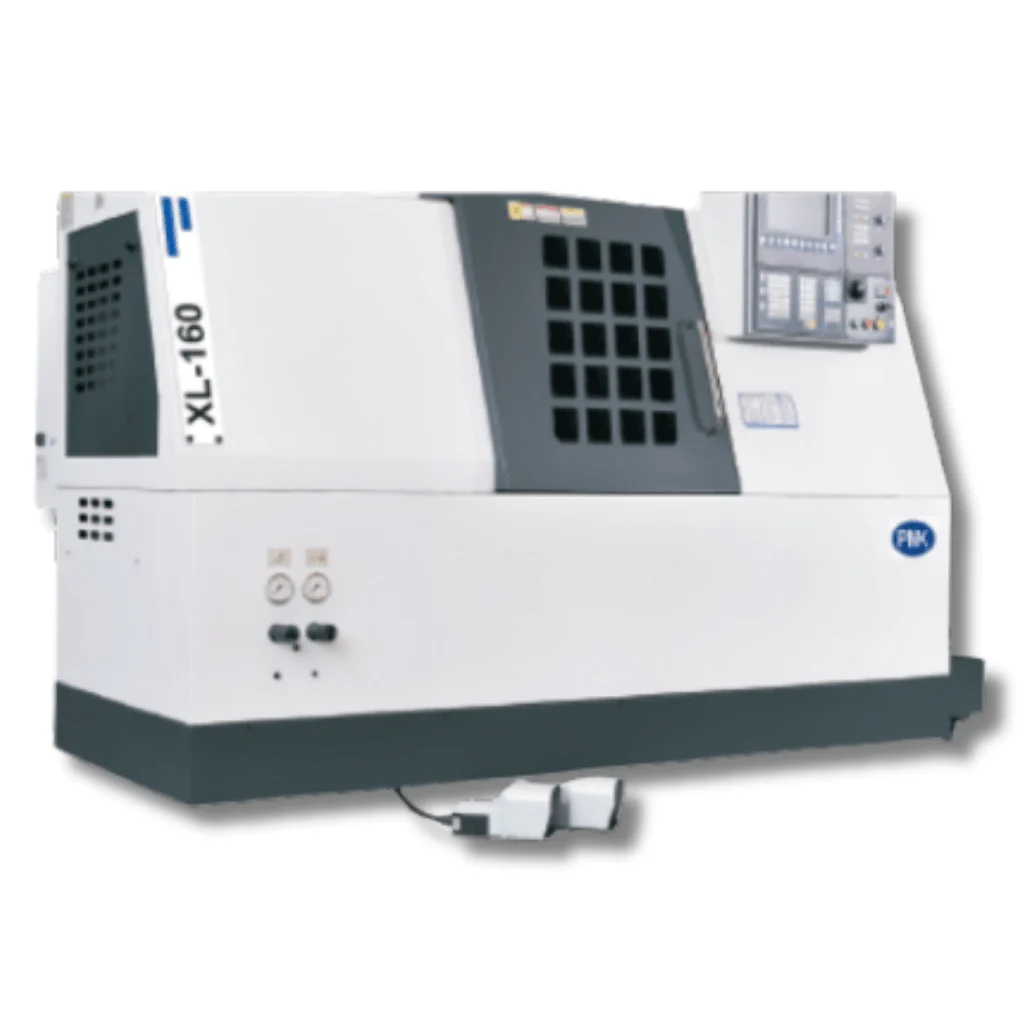

PMK XL-160 is a CNC turning centre offering enhanced rigidity and larger chuck capacity for medium-sized workpieces. It combines high-speed performance with stable cutting under heavy loads, ensuring precision and repeatability.
Key benefits
- Rigid one-piece bed construction for high dynamic stiffness.
- High-torque spindle motor suited for steel and alloy cutting.
- Advanced CNC controls for multi-axis operation and interpolation.
- Efficient chip and coolant management for continuous machining.
- Optional bar-feeder and automation compatibility for higher throughput.
Applications
- Precision turning of shafts, discs, and housings.
- Automotive, aerospace, and hydraulic component production.
- Medium-volume production lines and toolroom applications.
- Multi-material machining with high stability.
Specifications
| FEATURES |
|---|
| LM Guides For Both Axes |
| SIEMENS, FANUC, DELTA CNC Controller |
| Cartridge Type Spindle |
| 8 Station Turret |
| Full Enclosure |
| STANDARD FEATURES |
|---|
| AC Spindle Drive & AC Servo Drive |
| Linear Motion Guide Ways |
| Hardened and Ground Ball Screw |
| Hydraulic Chuck with Actuating Cylinder |
| 8 Station Bi Directional Turret |
| Tail Stock with MT Taper |
| Coolant System |
| Turning Tool Holders |
| Boring Bar Holders |
| OPTIONAL ACCESSORIES |
|---|
| Hollow Cylinder |
| Hydraulic Collet |
| Bar Puller |
| Bar Feeder |
| Chip Conveyor |
| Servo Turret |
| Roller Guide |
| Milling Spindle RPM - 4500 |
| Milling Spindle Power - 1.5 Kw Or More |
| CAPACITY | XL160 | |
|---|---|---|
| MAX. TURNING DIA. | 200 mm | |
| MAX. TURNING LENGTH | 300 mm | |
| SWING OVER BED | 300 mm | |
| STD. TURNING DIA. | 165 mm | |
| MAIN SPINDLE | ||
| SPINDLE NOSE | A2-5 | |
| BORE THROUGH SPINDLE | 38 mm | |
| BAR CAPACITY | 25 mm | |
| CHUCK SIZE | 165 mm | |
| FRONT BEARING BORE | 80 mm | |
| SPINDLE DRIVE | ||
| SPINDLE MOTOR POWER (CONT./15 MIN.) | 5.5 / 7.5 KW | |
| SPEED RANGE (RPM) | 1000-3500 | |
| AXES SLIDES | ||
| X AXIS | 140 mm | |
| Z AXIS | 300 mm | |
| RAPID TRAVERSE: X AXIS | 24 M/Min. | |
| RAPID TRAVERSE: Z AXIS | 24 M/Min. | |
| TAIL STOCK | ||
| QUILL DIAMETER | 70 mm | |
| QUILL STROKE | 80 mm | |
| TAPER IN QUILL | MT3 | |
| TURRET | ||
| TURRET TYPE | Ele. Mech/Hyd. | |
| TURRET MODEL | BTP 63 | |
| NO. OF STATIONS | 8 | |
| MAX. BORING BAR DIA. | 32 mm | |
| TOOL CROSS SECTION | 20 mm | |
| ACCURACY | ||
| POSITION ACCURACY | 0.015 mm | |
| REPEATABILITY | ± 0.003 mm | |
| CONTROL SYSTEM | ||
| Siemens 828D / Fanuc Oi Mate TD | ||
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
