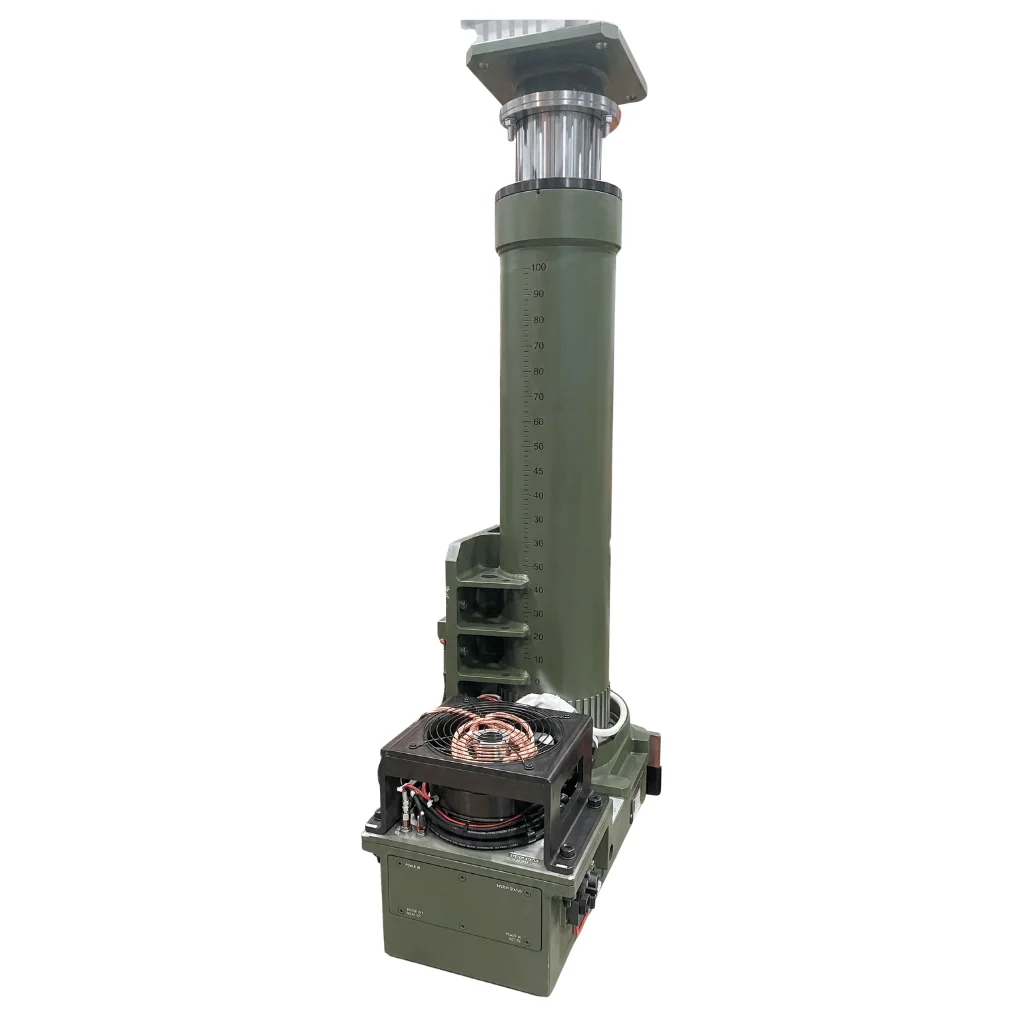

Electro-Mechanical Jack

The Electro-Mechanical Jack is a high-capacity deployment solution weighing 220 kg and engineered to support a load carrying capacity of 20,000 kg per unit. The mechanical architecture utilizes a precision Planetary roller screw mechanism, where the inner tube slides seamlessly inside the outer tube to provide stable and powerful vertical lift for heavy defense platforms.

Powered by a 415V, 3-phase, 50-cycle AC supply, the system is designed for ultra-rapid field positioning. It achieves full mechanical deployment in just 10 seconds, with an additional 10 seconds dedicated to precision automated leveling. This dual-speed operation ensures that missile launchers, radar cabins, and mobile command units reach operational readiness with minimal delay.

Integrated Safety Features

• Fail-Safe Braking: Motor equipped with fail-safe brakes and a manual hand release for emergency operations.
• Precision Monitoring: Specialized Otto-make limit switches provide positive indication for both fully retracted and fully extended tube positions.
• Visual Feedback: Real-time status indicators for Out-rigged, Folded, and Extension conditions visible at both the control system and vehicle cabin.
• Automated Cut-offs: Smart power management that automatically cuts off the motor when jacks are in the folded condition or when assembly twist locks are engaged.
