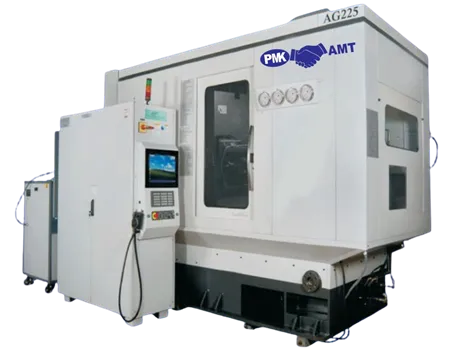

Gear Hobbing Machine
Our lineup of high-performance Gear Hobbing Machines brings precision and maximum productivity to modern gear manufacturing. Engineered to withstand heavy-duty loads while preserving superior accuracy, these machines are capable of accurately producing complex gear profiles, helical gears, and worm wheels with ease. From compact components to heavy industrial gears up to 1300mm diameter, our flexible range guarantees a solution perfectly suited to your needs. Fully integrated CNC controls ensure intuitive operation, consistent quality, and minimum setup times across varied production batches.
Standard Features
- 15" Touch screen/Num/Syntec: 10.4"--Fanuc screen
- Direct Drive for Hob spindle: ATE make/NUM
- Direct Drive for Work spindle: ATE make/NUM
- External magnetic chip conveyor
- Chiller unit for Coolant cooling
- Electrical cabinet cooler
- Steady column with NC Tail stock
- Hydraulic work clamping unit
- Hob arbor clamping; short taper-SK40
- Software application for Gears, spur/helical/worm wheels
- Hob arbor dia 32
- 2 cut cycle
- Instant column retraction-CNC
- CNC Control: Fanuc/Syntec/Siemens/NUM
- Chiller unit for Work spindle Torq motor cooling
Optional Features
- High speed loader, with chain conveyor-CNC
- Ring magazine: Dia 20--225mm
- Tapered/Crown hobbing cycles
- Diagonal hobbing
- Multi hobbing in single setup-2 hobs
- Work piece clamping fixtures for shaft type bore type components
Specifications
| Sr.No. | MACHINE SPECIFICATIONS | MODEL | ||||
|---|---|---|---|---|---|---|
| AG225 | AGB360 | AGB525 | AGB900 | AGB1250 | ||
| 1 | Component specification | |||||
| a | Work piece Dia: mm--Min | 40 | 40 | 80 | 110 | 110 |
| b | Work piece Dia: mm--Max | 250 | 360 | 525 | 1000 | 1300 |
| c | Work piece Len: mm--Max--Shaft | 550 | 750 | 750 | 1350 | 1800 |
| 2a | Module: M: mm/ UTS 700 Mpa | |||||
| b | max--1 cut | 4.5 | 4.5 | 6 | 8 | 10 |
| c | max--2 cut cycle/ 4 cut cycle optional | 6 | 8 | 12 | 16 | 24 |
| 3 | Gear Milling: | 12 | 22 | 22 | 24 | |
| Max Vertical slide travel: Z: mm | 350 | 500 | 450 | 1000 | 1000 | |
| 4 | Table dia: mm | 215 | 360 | 495 | 900 | 1200 |
| 5 | CD b/w Hob and work spl axis: min | 10//250 | 10//250 | 55//420 | 55//850 | 55//1050 |
| 6a | Distance to Hob axis & Table top: Min | 150 | 180 | 200 | 350 | 200 |
| b | Distance to Hob axis & Table top: Max | 500 | 680 | 650 | 1350 | 1200 |
| ( Actual work stroke-Z-axis | 350 | 500 | 500 | 1000 | 1000 | |
| 7a | Hob dia: mm: min | 40 | 40 | 60 | 80 | 120 |
| b | Hob dia/Gashing cutter dia: mm: max | 120 | 210 | 210/270 | 270/380 | 270/380 |
| c | Hob len: mm: max | 180 | 220 | 240 | 450 | 450 |
| 8 | Tangential: Y-shifting stroke | 180 | 210 | 325 | 500 | 500 |
| 9 | Hob head swivel angle : deg | ±45 | ±45 | ±45 | ±45 | ±45 |
| 10a | Hob spindle: rpm | 2000 | 1250 | 540 | 540 | 85--420 |
| b | Spindle power; kW | 14.8 | 18.5 | 18.5 | 55 | 55 |
| c | Spindle Torq: Nm | 280 | 380 | 1080 | 6000 | 6000 |
| 11a | Work spindle: rpm | 200 | 200 | 75 | 65 | 35 |
| b | Power: kW | 13.1 | 13.1 | 13.1 | 14 | 22.2 |
| c | Spindle Torq: Nm | 133 | 360 | 650 | 3386 | 3386 |
| 12 | Total connected load; kVA | 65 | 65 | 65 | 200 | 200 |
| 13 | Machine floor plan: m x m | 4.5m x 4.5m | 4.5m x 4.5m | 4.5m x 5.5m | 5.5m x 7m: | 5.5m x 7m: |
| 14 | Weight of the machine: Tons | 8 | 9 | 16 | 37.5 | 45 |
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
