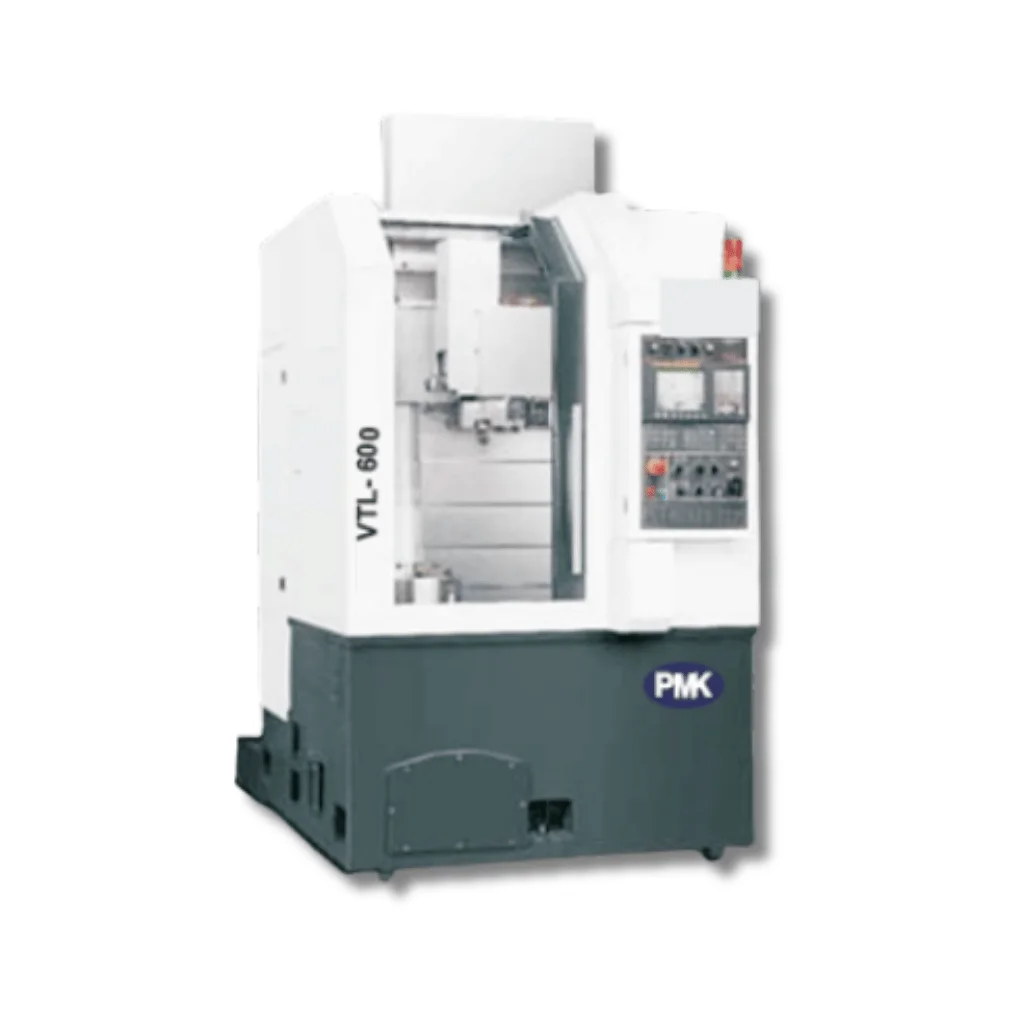

VTL-600
PMK VTL-600 is a high-capacity vertical turning lathe engineered for precision and productivity in medium to large part machining. Its rigid structure and high-torque spindle ensure smooth performance during both heavy roughing and fine finishing operations.
Key benefits
- Heavy-duty structure for improved cutting stability.
- Precision spindle and cross-slide system for accurate machining.
- Suitable for large-diameter, short-height components.
- Efficient chip evacuation for continuous operation.
- Optional tool changer and automation compatibility.
Applications
- Energy, oil & gas, and construction components.
- Heavy flanges, bearing housings, and valve rings.
- Precision turning for cast iron, steel, and alloy materials.
- Automotive and general industrial production.
Specifications
| Capacity | VTL - 600 |
|---|---|
| Swing Over Diameter | 750 mm |
| Max. Turning Diameter | 600 mm |
| Max. Turning Height | 500/700 mm |
| Max. Work Piece Weight | 400 Kgs. |
| Spindle | |
| Spindle Nose | A2 - 8 |
| Spindle Motor | 11 / 15 Kw |
| Spindle Range | 350 - 1000 rpm |
| Slides | |
| X Axis Travel | 600 mm |
| Z Axis Travel | 500 mm |
| Turret or RAM Head | |
| Turret*** | 8 Station |
| ACCURACY | |
| POSITION ACCURACY | 0.015 mm |
| REPEATABILITY | ± 0.003 mm |
| CNC Control System | |
| Control System | Siemens, Fanuc, Mitsubishi |
*** RAM Type Head also available as Option.
| FEATURES |
|---|
| Roller Guides For Both Axes |
| SIEMENS, FANUC CNC Control System |
| Cartridge Type Spindle |
| 8 Station Turret |
| Full Enclosure |
| STANDARD FEATURES |
|---|
| AC Spindle Drive & AC Servo Drive |
| Roller Guide Ways |
| Hardened and Ground Ball Screw |
| Hydraulic Chuck with Actuating Cylinder |
| 8 Station Bi Directional Turret |
| Coolant System |
| Turning Tool Holders |
| Boring Bar Holders |
| OPTIONAL ACCESSORIES |
|---|
| Hydraulic Turret |
| Chip Conveyor |
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
