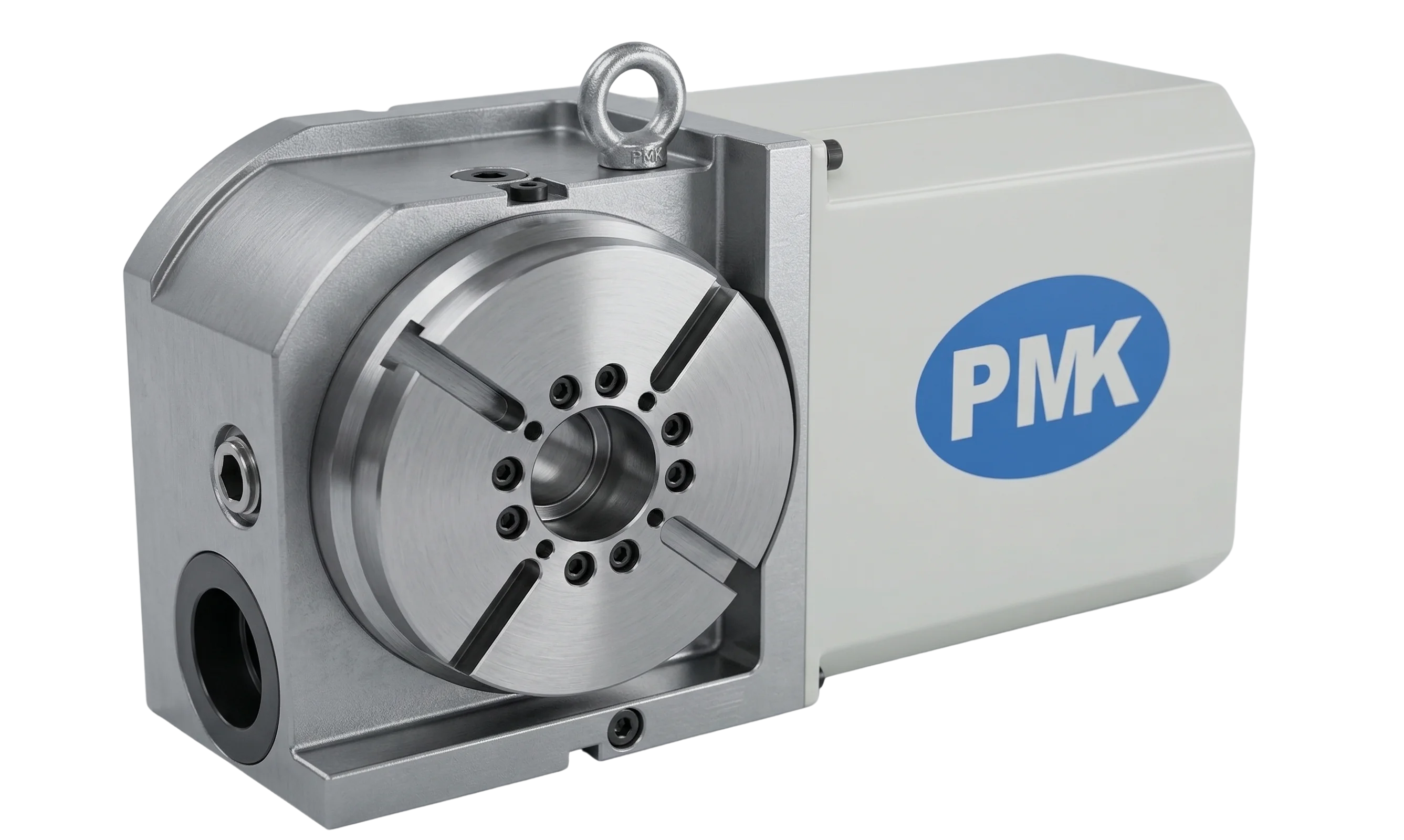

PMK Rotary NC Tables are high-performance, servo-driven rotary units designed for CNC machining centres where continuous or high-precision rotary motion is required. Integrated motor or torque-motor drive systems provide rapid indexing, high torque clamping and direct integration with CNC control systems.

Kitagawa +1

Key benefits

• High-accuracy indexing and rotation matched to CNC control systems.
• High torque table clamp/unclamp for heavy work-piece support and stability.
• Compact, high-rigidity design for full integration into machine tool platforms.
• High speed and rapid indexing capability for improved productivity.
• Low-backlash drive for superior positional repeatability and multi-axis synchronisation.

Applications

• CNC machining centres requiring 4th/5th axis rotation for complex parts.
• Automation stations where parts must rotate under digital control.
• Heavy-duty machining requiring high torque clamp and minimal repositioning error.
• High-precision indexing for metrology or manufacturing operations.

Technical highlights

• Motorisation options including top-motor, side-motor and torque-motor designs. — Kitagawa
• Indexing accuracy and repeatability often measured in arc-seconds.
• High clamp force with direct drive or gear-drive designs.
• Mounting and connection interfaces compatible with standard machine tool formats.
