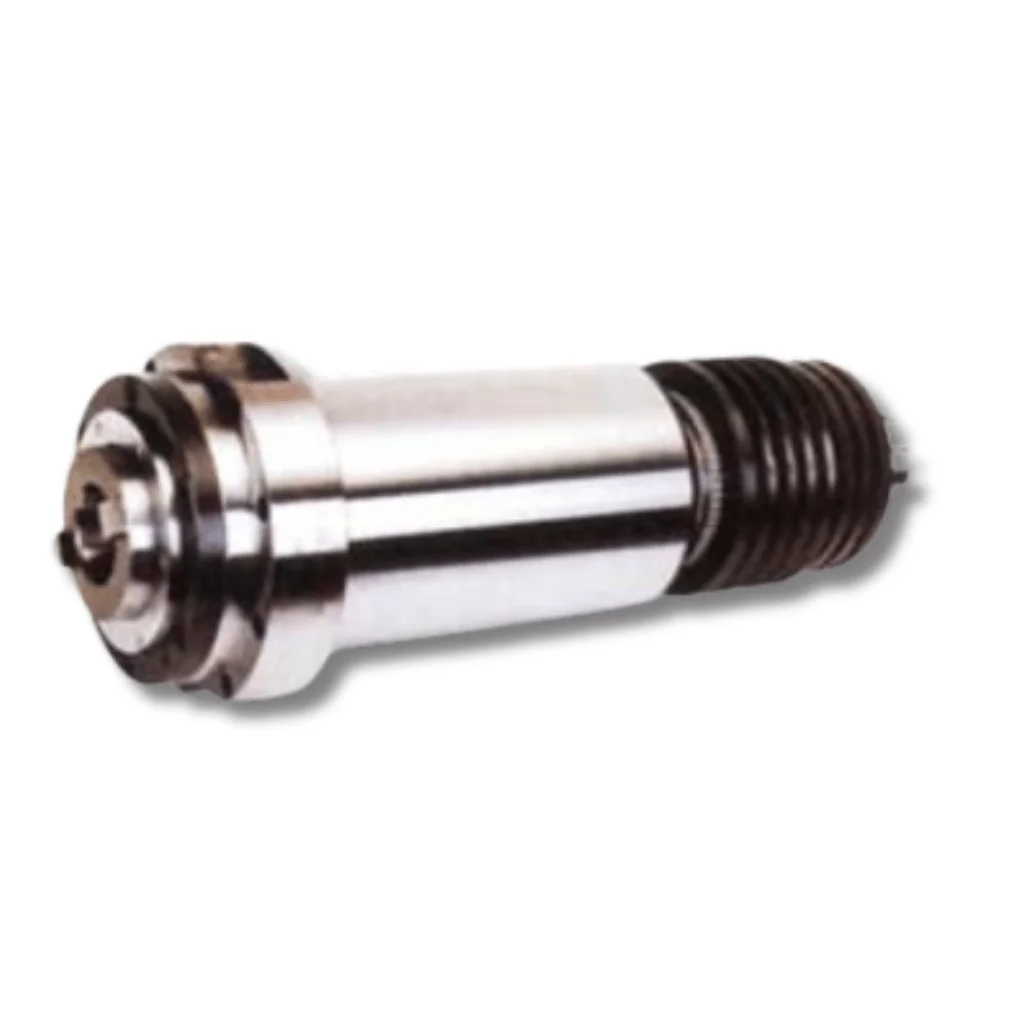

PMK Belt-Driven Spindles for Machining Centers are precision spindle assemblies engineered for milling, drilling, and light grinding applications requiring stable torque, rigidity, and long-term accuracy.

These spindles deliver smooth, vibration-free power transmission through a precision belt drive, ensuring reliable operation across medium- to high-speed ranges. The compact construction and standardized BT30, BT40, and BT50 interfaces make them ideal for integration in modern vertical or horizontal machining centers.

Key benefits

• Performance: available in speed options from 5,000 rpm to 12,000 rpm, supporting both rough and finish machining operations.
• Precision: fitted with P4-class angular-contact or EX-series precision bearings for low runout and consistent surface finish.
• Compatibility: BT30 / BT40 / BT50 tool interfaces enable easy replacement or retrofit on existing CNC machines.
• Reliability: robust belt-drive design ensures constant torque with reduced heat generation and low maintenance needs.
• Flexibility: multiple mounting options for integration across varied machining center platforms.

Applications

• High-speed milling, drilling, and tapping operations.
• CNC vertical and horizontal machining centers.
• Precision component manufacturing for automotive, aerospace, and tooling sectors.
• Retrofit or OEM spindle assemblies for belt-driven machining systems.
