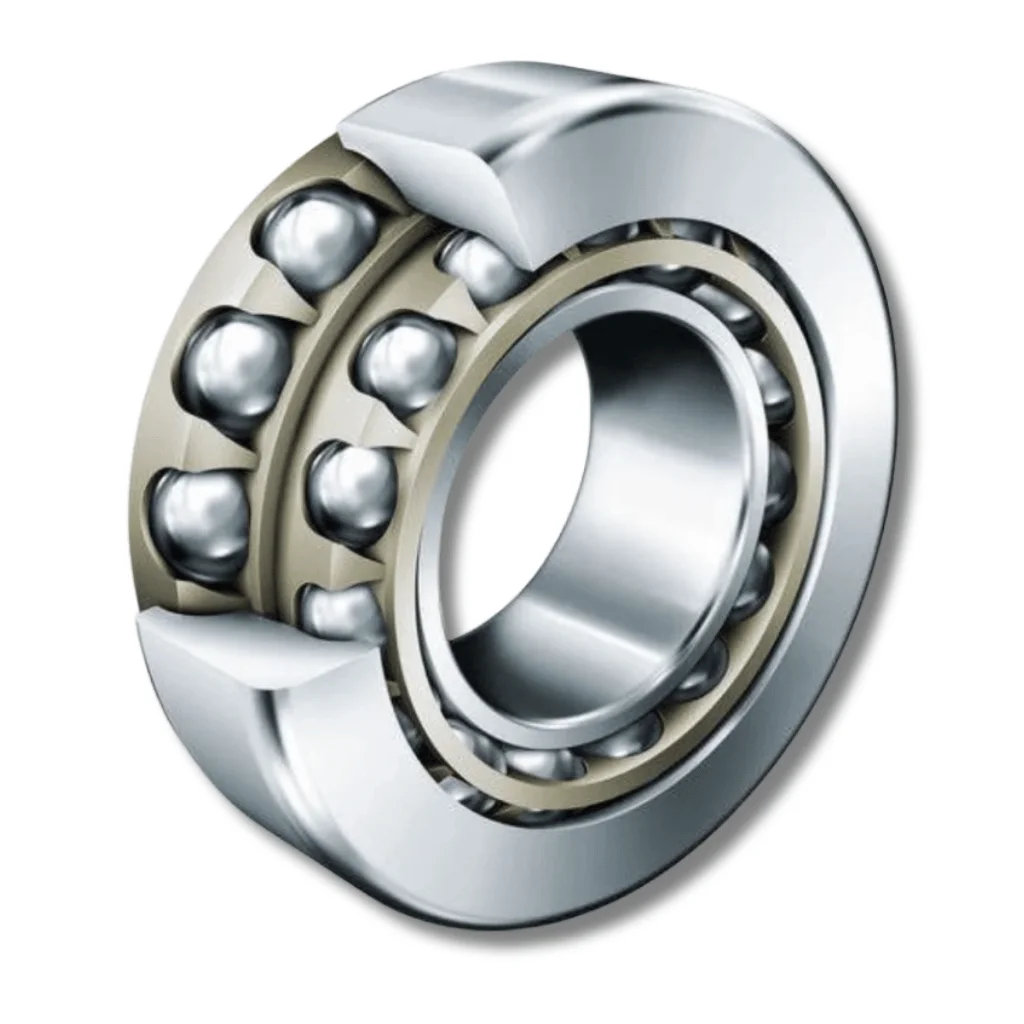

Double Row Angular Contact Ball Bearings

PMK Double Row Angular Contact Ball Bearings combine the load-handling advantages of paired single-row bearings in a compact unit. These bearings support high radial and axial loads in both directions, ensuring rigidity and smooth operation even under demanding conditions.

Their symmetrical design provides stable running accuracy and eliminates the need for separate matched pairs, reducing installation space and cost.

Key benefits

Supports axial loads in both directions with high radial capacity.
Compact design replaces two single-row bearings.
High rigidity and resistance to misalignment.
Reliable operation at high speeds.
Reduced installation time and simplified mounting.

Applications

Electric motors and gearboxes.
Automotive wheel hubs and transmissions.
Industrial machinery and conveyor systems.
Pumps, compressors, and high-precision assemblies.

Request Quote (RFQ)

Specifications

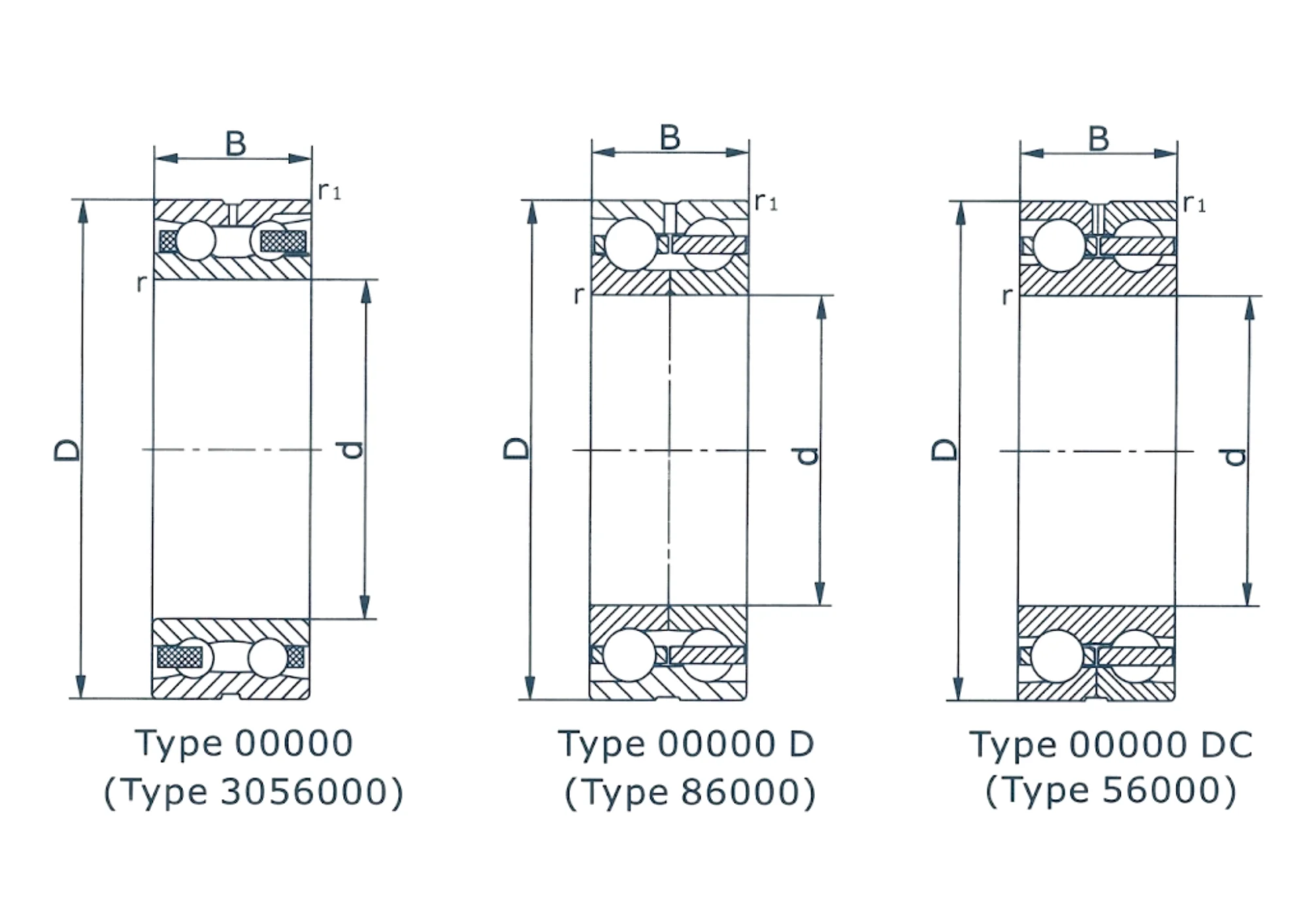

Boundary dimensions (mm)					Basic load ratings (kN)		Designations		Mass	Limiting speeds (r/min)
d	D	B	r_min	r_1min	C_r	C_or	Current	Original	kg	Grease	Oil
100	180	60.3	2.1	2.1	142	220	3220	3056220	6.1	2000	3000
100	215	82.6	3	3	230	355	3320	3056320	13.5	1800	2600
110	200	69.8	2.1	2.1	170	270	3222	3056222	8.8	1900	2800
110	240	92.1	3	3	262	425	425	3322	3056322	19	1700
140	210	69	2	2	178	237	4028D	4086128	8.2	1700	2400
150	209.5	55	2	2	160	250	-	86930	6	1700	2400
	225	73	2	2	180	255	4030X2D	86730	10.7	1600	2200
	230	70	2	2	212	325	4030X3D	86830	11.5	1600	2200
160	240	76	2.1	1.1	230	320	4032X2D	305183	10.6	1600	2200
	240	58	2.1	2.1	185	286	3032X2D	3086132	9.6	1600	2200
	240	80	2.1	2.1	224	306	4032D	4086132	12.6	1600	2200
170	230	56	2.1	2.1	165	255	4934X3D	86734	7.5	1600	2200
170	260	90	2.1	2.1	228	385	4034X2D	4086134	18	1400	1900
180	280	92	2.1	2.1	290	440	4036X2D	4086136	22	1300	1800
180	280	100	2.1	2.1	290	440	4036D	4086136	24	1400	1900
190	290	92	2.1	2.1	284	424	4038X2D	15638	22.4	1200	1700
190	290	100	2.1	2.1	284	424	4038D	4086138	22.3	1300	1800
200	310	109	2.1	2.1	340	538	4040D	4086140	29.5	1200	1700
200	310	96	2.1	2.1	340	538	4040X2DC	4056140	29.5	1300	1800
220	309.5	76	2.1	2.1	259	400	4944X3D	86744	17.2	1000	1500
220	340	118	3	3	361	591	4044D	4086144	37.2	1000	1500
220	309.5	76	2.1		2.1	259	400	4944X3D	86744	17.2	1000
220	340	118	3		3	361	591	4044D	4086144	37.2	1000
230	330	80	2.1		2.1	110	500	4946X1D	86746	11	1000
240	360	118	3		3	383	661	4048D	4086148	43.5	950
240	440	144	4		4	576	1060	3248X2D	86748	101	800
260	359.5	92	2.1		2.1	650	1100	4952X2D	86952	28	800
	369.5	92	4		4	325	560	4952X3D	86752	32.9	850
	400	140	3		3	410	720	4052D	4086152	69.9	950
280	389.5	92	4		4	367	658	4956X3D	86756K	35.3	850
280	420	140	3		3	441	892	4056D	4086156	82.5	800
300	460	160	3		3	475	1090	4060D	4086160	101	800
320	459.5	140	4		4	504	1010	4064X3D	86764	73.9	750
320	480	160	3		3	496	1200	4064D	4086164	120	750
340	520	180	3		3	525	1360	4068D	4086168	132	700
