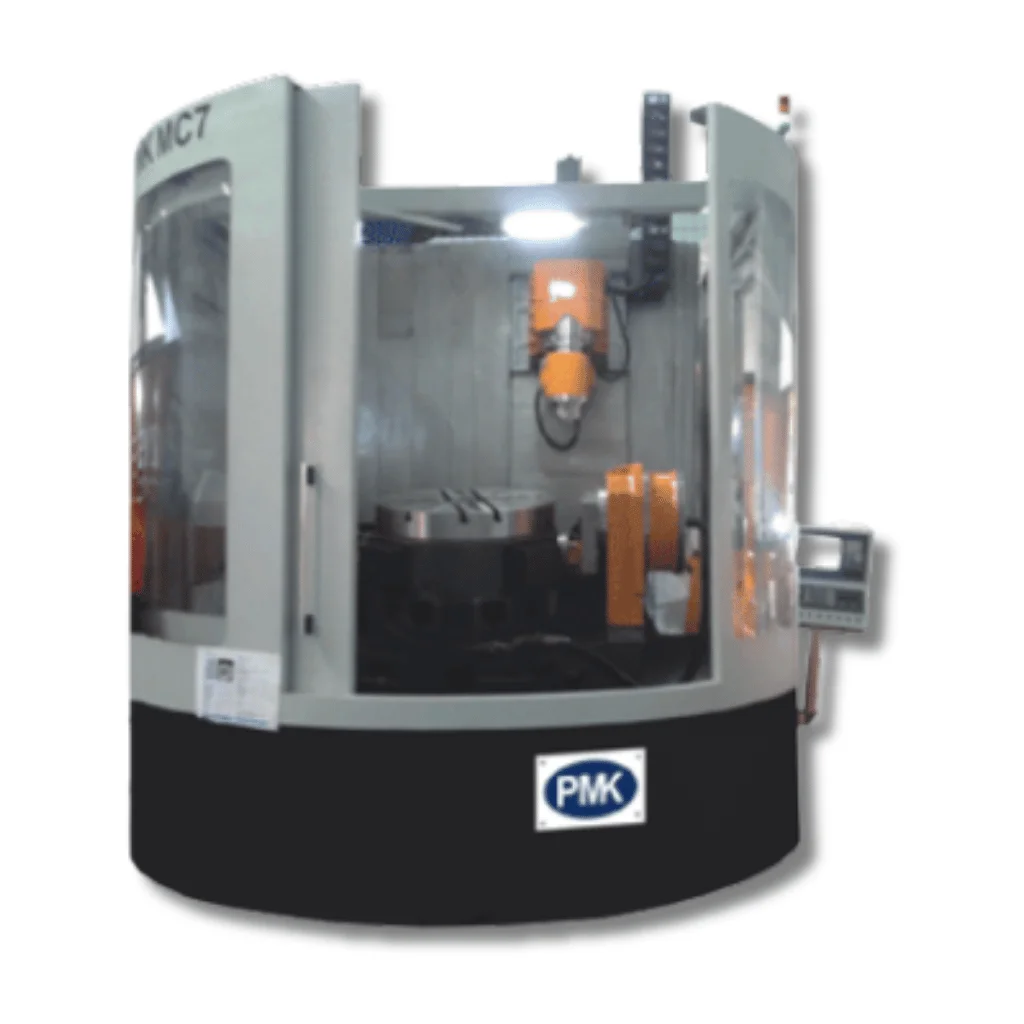

PMK-MC-7-1000
PMK MC-7-1000 is a high-precision vertical machining centre designed for accurate, efficient, and reliable performance across a wide range of industrial machining applications. Built on a rigid, vibration-damped structure, the MC-7-1000 delivers exceptional stability, cutting accuracy, and productivity for both toolroom and production environments.
This CNC machine is engineered for custom manufacturing, offering flexible spindle configurations, multi-axis capabilities, and high-speed motion control for demanding component geometries.
Key benefits
- Precision machining: rigid structure with linear guides and servo-driven axes for micron-level accuracy.
- High productivity: optimized tool change and chip management for reduced cycle time.
- Versatile performance: milling, drilling, tapping and contouring across metals and alloys.
- Thermal stability: advanced spindle cooling and balanced motion control for consistent accuracy.
- Custom configurations: multiple spindle/table/control options to meet customer requirements.
- User-friendly control: compatible with Fanuc, Siemens or Mitsubishi CNC systems.
Applications
- Precision components for automotive, aerospace and defense.
- Toolroom and die/mold machining requiring high surface finish.
- Small-batch production and special-purpose machining tasks.
- Custom manufacturing setups needing repeatable, high-rigidity machining.
Specifications
| Machine Description | Unit | Specifications | |
|---|---|---|---|
| Axis Strokes | |||
| X - Y - Z | mm | 1250 x 1050 x 1000 | |
| Spindle Centre Clearance to Rotary Pallet (Z Axis) | |||
| Milling Head Horizontal | mm | 310 to 1310 | |
| Milling Head Vertical | mm | 25 to 1025 | |
| Spindle Nose Clearance – Table Centre (Y Axis) | |||
| Milling Head Horizontal | mm | 100 to +950 | |
| Milling Head Vertical | mm | 150 to 900 | |
| Linear Axes X, Y, Z | |||
| Feed / Rapid Travel | m/min | 30 | |
| Feed Force | N | 10,000 | |
| Milling / Turning Table | |||
| Table Diameter | mm | 1000 | |
| Swing Diameter | mm | 1200 | |
| Turning Speed | RPM Max | 315 | |
| Load on Table | kg Max | 1000 | |
| Table Torque (Turning) | Nm | 830 (Cont.) / 1087 (40% ED) | |
| Table (Direct Drive) Power | kW | 36 | |
| Table Rotary Feed (Indexing - W - Axis) | RPM Max | 0 to 6 | |
| Universal Milling Head (Directly Driven) | |||
| Milling Head Swivel (C - Axis) | deg | +90° / -90° | |
| Milling Head Swivel (B - Axis) | deg | +90° / -90° | |
| Rapid Feed of C & B Axes | RPM | 30 | |
| Milling Spindle and Drive | |||
| Spindle Size | BT50 / HSK | 100A | |
| Spindle Speed (Max) | RPM | 12,000 | |
| Spindle Power | kW (Cont./Peak) | 22 / 27 | |
| Spindle Torque (Max) | Nm | 117 | |
| Auto Tool Changer | |||
| Tool Size and No. of Tools | BT | 50 - 40 Nos. | |
| Maximum Tool Length | mm | 300 | |
| Maximum Tool Weight | kg | 15 | |
| Machine Size and Weight | |||
| Length x Width x Height | mm | 7000 x 5000 x 5600 | |
| Approx. Weight | kg | 25,000 | |
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
