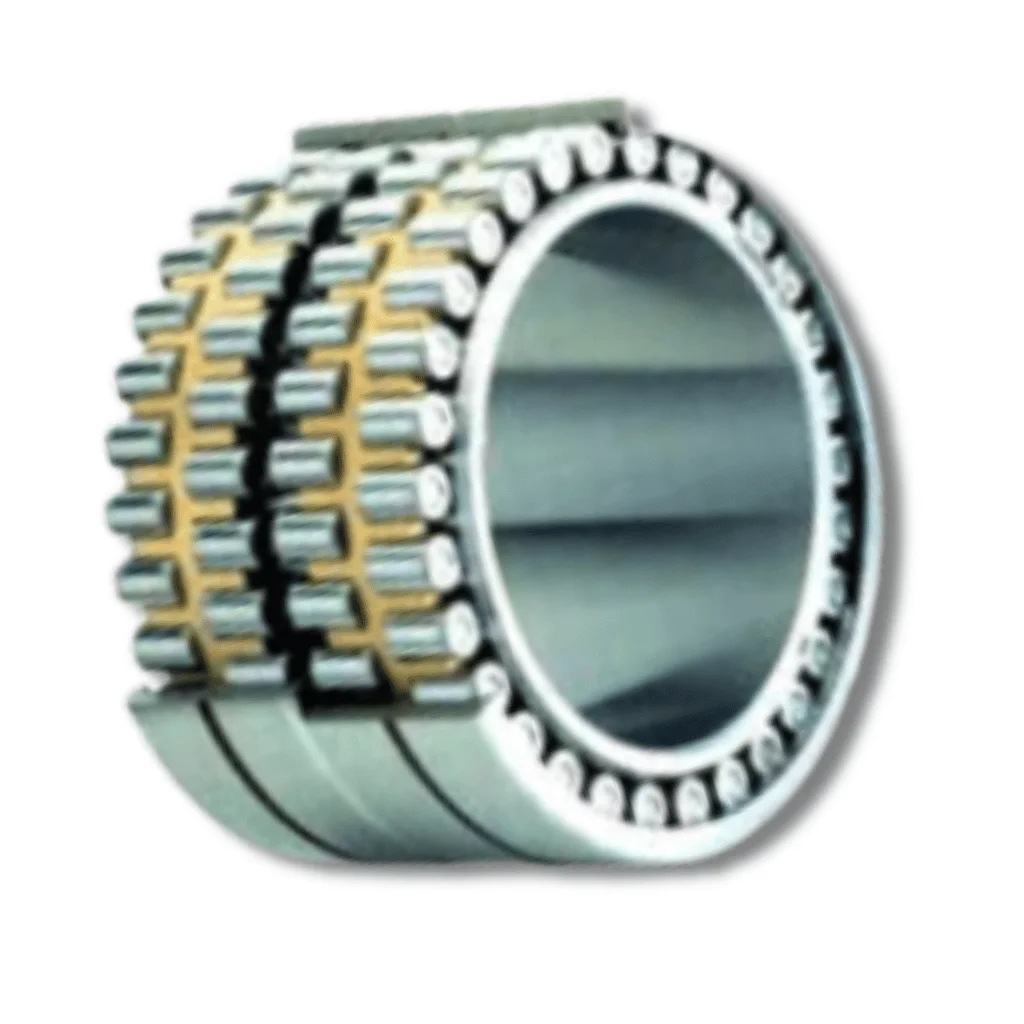

Four Row Cylindrical Roller Bearings

PMK Four Row Cylindrical Roller Bearings are designed for extremely high radial loads in heavy-duty and high-speed applications such as rolling mills. These bearings provide high rigidity, low friction, and consistent accuracy under continuous load conditions.

Their multi-row construction ensures excellent load distribution and long service life even in harsh environments.

Key benefits

Ultra-high radial load capacity with excellent stiffness.
Ideal for continuous, high-speed, heavy-duty operation.
Low friction for reduced energy consumption.
High dimensional accuracy for consistent performance.
Long service life under shock and vibration.

Applications

Steel rolling mills and large drive systems.
Heavy industrial gearboxes and presses.
Continuous casting and metallurgical machinery.
Paper mills and power transmission systems.

Request Quote (RFQ)

Specifications

Boundary dimensions (mm)					Basic load ratings (kN)		Designations		Mass (kg)
d	D	B	r_min	r_1min	C_r	C_or	Current	Original	Mass (kg)
90	140	70	1.5	1.1	222	454	FC182870	672718	4.4
90	140	74	1.5	1.1	222	454	FC182874	-	4.5
100	140	70	1.5	1.1	194	416	FC202870	672820	3.5
	140	90	1.5	1.1	290	616	FC202890	-	4.3
	140	104	1.5	1.1	335	730	FC2028104	672720	5.1
	145	70	1.5	1.1	219	457	FC202970	672720K	4.1
	150	106	1.5	1.1	347	736	FC2030106	-	6.8
110	150	80	1.5	1.1	241	602	FC223080	-	4.4
	170	90	2	2	358	754	FC223490	-	7.9
	170	120	2	2	605	1060	FC2234120	672722	10.6
	210	170	2	2	923	1610	FC2242170	-	27.3
120	180	92	2	2	375	820	FC243692	-	8.7
	180	105	2	2	612	927	FC2436105	672724	9.8
	180	120	2	2	477	1061	FC2436120	-	11.2
130	200	104	2	2	478	1006	FC2640104	-	12.5
130	200	125	2	2	738	1220	FC2640125	672726	15
140	210	100	2	2	503	1096	FC2842100	-	12.8
	210	106	2	2	503	1096	FC2842106	-	13.6
	210	125	2	2	718	1365	FC2842125	672728	15.8
	210	155	2	2	756	1774	FC2842155	-	19.6
145	210	155	2	2	720	1560	FC2942155	-	24.4
145	225	156	2	2	815	1660	FC2945156	672729	24.4
150	225	120	2	2	788	1586	FC3045120	-	17.5
	225	150	2	2	865	1770	FC3045150	-	21
	230	156	2	2	840	1760	FC3046156	672730	24.6
160	230	130	2	2	1040	1384	FC3246130	-	22.7
	230	168	3	2	818	2218	FC3246168	-	24.2
	240	124	2.1	2.1	690	1543	FC3248124	672732K	20.6
	240	168	2.1	2.1	947	2310	FC3248168	672732	28
	260	168	2.5	2.1	953	2326	FC3252168	-	38.2
170	230	130	2	2	680	1720	FC3446130	-	16.3
	230	152	2	2	765	1790	FC3446152	-	17.4
	230	180	2	2	707	2041	FC3446180	-	22.7
	240	130	2	2	830	1830	FC3448130	-	19
	250	170	2.1	2.1	1000	2400	FC3450170	672734H	29.9
	260	120	2.1	2.1	863	1730	FC3452120	672734Y	24.2
	260	150	2.1	2.1	860	1948	FC3452150	-	30.2
	260	170	2.1	2.1	1080	2460	FC3452170	-	34.9
	260	225	2.1	2.1	1270	3350	FC3452225	-	43.5
180	250	120	2.1	2.1	609	1583	FC3650120	-	19
	250	156	2	2	710	1527	FC3650156	672836	24.7
	260	120	2.5	2.1	693	860	FC3652120	-	20.2
	260	124	2.1	2.1	718	1668	FC3652124	672736K	22.6
	260	154	2.1	2.1	983	2200	FC3652154	-	28.2
	260	160	2.1	2.1	893	2206	FC3652160	-	29.2
	260	168	2.1	2.1	1060	2440	FC3652168	672736	30.7
	260	180	2.1	2.1	1150	2560	FC3652180	-	32.9
	280	180	2.1	2.1	1220	2580	FC3656180	-	43.4
190	260	168	2.1	2.1	1020	2600	FC3852168	-	27.9
	265	124	2.1	2.1	816	1926	FC3853124	672838K	22.1
	270	124	2.1	2.1	816	1925	FC3854124	-	24.2
	270	168	2.1	2.1	1062	2798	FC3854168	672738K	32
	270	200	2.1	2.1	1359	3350	FC3854200	672738	38.2
	280	200	2.1	2.1	1540	3350	FC3856200	-	41.5
200	270	120	2.1	2.1	615	1626	FC4054120	-	20.8
	270	170	2.1	2.1	985	2670	FC4054170	-	29.5
	280	170	2.1	2.1	1130	2730	FC4056170	-	33
	280	200	2.1	2.1	1359	2693	FC4056200	-	39.9
	290	130	2.5	2.1	840	1975	FC4058130	-	29.9
	290	192	2.1	2.1	1386	3250	FC4058192	672740	44.9
210	290	192	2.1	2.1	1300	3400	FC4258192	-	40.6
	300	170	2.1	2.1	1031	2814	FC4260170	-	41.4
	300	210	2.1	2.1	1300	3040	FC4260210	672742	50.3
340	450	250	3	3	2299	6312	FC6890250	-	111.2
	450	250	3	3	2045	6134	FCD6890250	-	112.6
	460	260	4	4	2132	5977	FC6892260	-	128.2
	480	350	4	4	4270	9480	FCD6896350	-	207
350	500	380	5	5	4290	11700	FCD70100380	672770	242
350	520	300	5	5	3860	9000	FCD70104300	-	220
360	500	250	3	3	2940	6740	FCD72100250	-	143
360	510	370	4	4	4010	10700	FCD72102370	-	273
370	520	380	4	4	4900	10750	FCD74104380	672974	263
	520	380	4	4	4160	12312	FCDP74104380	-	261
	520	400	4	4	4140	11200	FCD74104400	-	267
	540	400	4	4	3970	11240	FCD74108400	672774	322.4
380	540	380	4	4	3766	10930	FCD76108380	-	290.9
	540	400	4	4	4800	12000	FCD76108400	672776	305
	540	400	4	4	5140	14000	FCDP76108400	-	305
390	540	320	10x20°	2	4750	12200	FCDP78108320	-	230
390	550	310	11x20°	4	4600	11200	FCDP78110310	-	240
400	550	300	4	4	3510	9260	FCD80110300	-	214
	560	350	5	5	3840	10400	FCD80112350	-	271
	560	410	5	5	5790	15600	FCDP80112410	-	315
	590	440	5	5	6630	16600	FCD80118440	-	415
410	560	400	14x20°	2	5790	16000	FCDP82112400	-	290
410	600	440	5	5	6880	17300	FCDP82120440	-	425
420	580	260	4	4	3960	9650	FCD84116260	-	210
	580	320	4	4	4200	10800	FCD84116320	-	250
	600	440	5	5	6270	18100	FCDP84120440	-	400
	620	400	4	4	6230	15600	FCD84124400	-	430
440	620	450	5	5	6490	19600	FCDP88124450	-	440
440	650	355	12.5x20°	4	5162	14000	FCDP88130355	-	420
450	590	300	12x45°	4	3510	12000	FCDP90118300	-	247
460	650	424	12x20°	3	7000	18300	FCDP92130424	-	450
460	650	470	5	5	7900	22400	FCDP92130470	-	510
480	650	450	6	6	7420	21200	FCDP96130450	-	440
	680	420	5	5	7500	19300	FCDP96136420	-	515
	680	500	5	5	7323	24000	FCDP96136500	-	605
500	670	450	5	5	5343	17490	FCDP100134450	6728/500Y	460
	680	405	6	6	5495	16570	FCD100136405	-	453
	680	450	5	5	7420	22000	FCDP100136450	-	500
	710	480	5	5	7920	21600	FCD100142480	-	610
	720	400	6	3	7120	17600	FCD100144400	-	530
	720	530	6	6	9720	19890	FCDP100144530	-	755
510	680	500	7.5x20°	5	8070	26000	FCDP102136500	-	522
	730	520	6	6	8560	22000	FCD102146520	-	750
	760	550	16x20°	3	10800	26500	FCDP102152550	-	950
530	760	520	6	6	10530	28500	FCDP106152520	-	775
	780	500	6	6	8410	20400	FCD106156500	-	805
	780	570	6	6	11520	32500	FCDP106156570	-	960
550	740	510	6	6	7769	27000	FCDP110148510	-	615
	800	520	6	6	10530	26500	FCDP110160520	-	895
	800	560	6	6	10890	28000	FC110160560	-	930
570	750	530	5	5	6745	25200	FCD114150530	6727/570	662.5
600	820	575	6	6	11700	36000	FCDP120164575	-	910
	870	540	20x20°	4	11800	31500	FCDP120174540	-	1100
	870	640	6	6	13600	40000	FCDP120174640	-	1300
610	820	430	19x20°	3	8400	23600	FCDP122164430	-	650
650	900	650	7.5	7.5	15480	41500	FCDP130180650	-	1260
650	920	670	7.5	7.5	15480	46500	FCDP130184670	-	1450
660	820	440	7.5	4	6730	22800	FCD132164440	-	530
660	880	450	6	6	5546	23600	FCD132176450	-	785
680	940	600	4	4	16900	53400	FCDP136188600	-	1380
680	980	640	20x20°	4	13230	41800	FCDP136196640	-	1590
690	980	715	7.5	7.5	17820	51300	FCDP138196715	-	1780
690	980	750	7.5	7.5	17000	53000	FCDP138196750	-	1880
700	930	620	18x20°	7.5	11600	40850	FCDP140186620	-	1180
700	980	700	6	6	17800	48200	FCDP140196700	-	1720
710	1000	715	7.5	7.5	15400	53200	FCD142200715	-	1860
730	940	500	3	3	10150	42500	FCDP146188500	-	1000
	960	620	20x20°	7.5	11800	48750	FCDP146192620	-	1220
	1030	750	7.5	7.5	16000	55500	FCDP146206750	-	2040
750	1000	500	6	6	9460	32000	FCD150200500	-	1150
750	1000	670	7.5	7.5	13500	47500	FCDP150200670	-	1480
780	1070	780	25x20°	7.5	17200	57900	FCDP156214780	-	2300
800	1080	700	7.5	7.5	15200	55500	FCDP160216700	-	1950
800	1150	850	7.5	7.5	21000	76600	FCDP160230850	-	3150
820	1130	800	7.5	7.5	18600	64600	FCDP164226800	-	2540
850	1150	840	7.5	7.5	19600	72009	FCDP170230840	-	2570
	1180	850	7.5	7.5	20100	72700	FCDP170236850	-	2850
	1220	900	5	5	23000	84000	FCDP170244900	-	3720
900	1220	840	24x20°	7.5	20300	76000	FCDP180244840	-	3060
900	1280	930	25x20°	7.5	25300	88350	FCDP180256930	-	4080
950	1300	850	5	5	22168	81318	FCDP190260850	6727/950Y	3505
	1360	975	26x20°	7.5	26200	90000	FCDP190272975	-	4900
	1360	1000	22x20°	7.5	29200	99000	FCDP1902721000	-	5020
980	1310	880	20x20°	7.5	22000	82000	FCDP196262880	-	3310
1000	1360	800	23x20°	7.5	22000	80000	FCDP200272800	-	3560
1040	1440	1000	27x20°	7.5	34200	51300	FCDP2082881000	-	5100
1200	1590	1050	30x20°	7.5	37620	120600	FCDP2403181050	-	5970
1300	1655	880	7.5	7.5	33660	109800	FCDP260331880	-	4800
1350	1765	1360	42x20°	9	36180	109800	FCDP2703531360	-	9100
1400	1780	1200	40x20°	9	47070	146700	FCDP2803561200	-	7400
1400	1900	1360	40x20°	9	55440	164700	FCDP2803601360	-	11300
