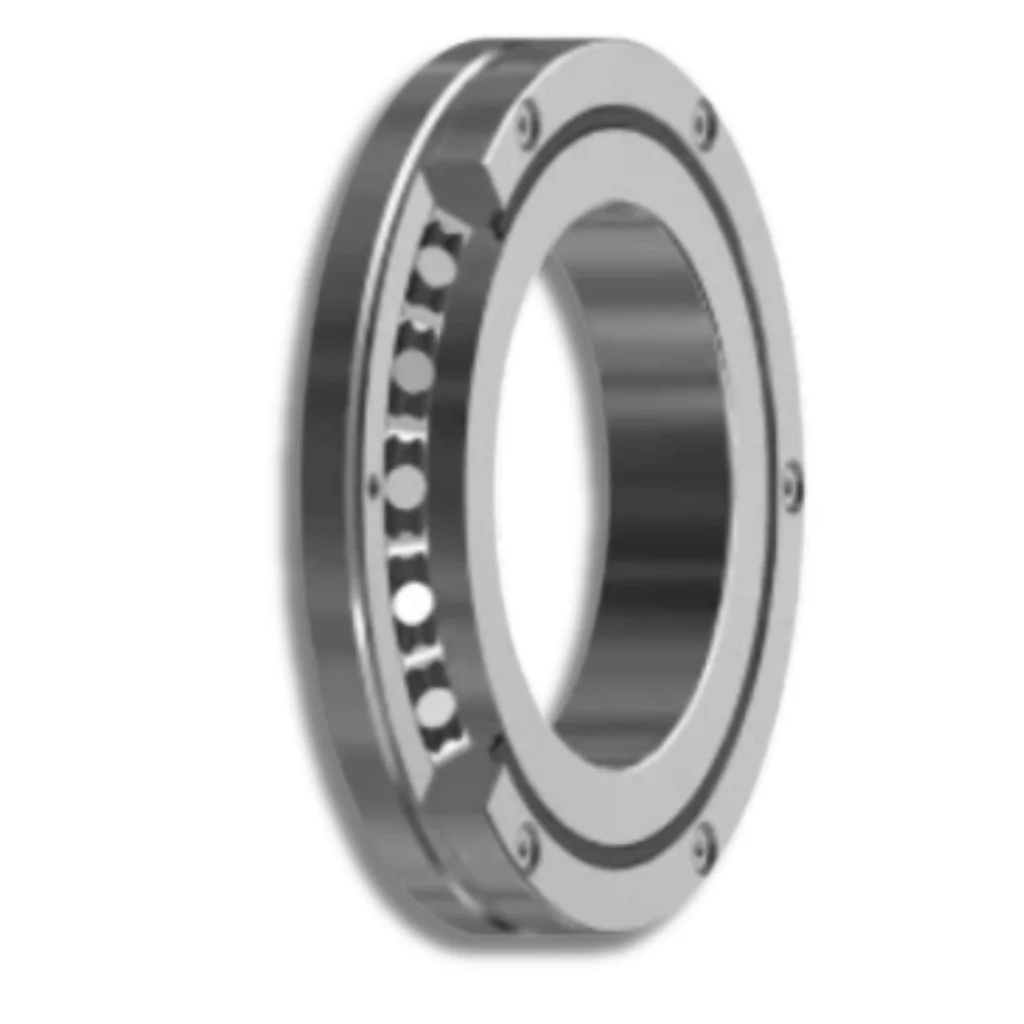

Crossed Cylindrical Roller Slewing Bearings (Internal Gears)

PMK Crossed Cylindrical Roller Slewing Bearings with Internal Gear provide integrated rotational transmission and load support in a compact assembly. The crossed roller arrangement ensures high rigidity and uniform load distribution while the internal gear enables efficient drive integration.

Key benefits

Combines load-bearing function and internal gear drive.
Compact, high-rigidity structure for limited space systems.
High positioning accuracy and smooth motion.
Low friction operation with precise gear engagement.
Long service life under combined loading conditions.

Applications

Robotics and automated rotary platforms.
CNC rotary tables and machine tool indexing heads.
Aerospace and radar drive systems.
Industrial automation with integrated drive mechanisms.

Request Quote (RFQ)

Specifications

Boundary dimensions (mm)			Mount dimensions (mm)						Structure dimensions (mm)						Gear constants (mm)					Designations	Basic load ratings (kN) Coa	Mass (kg)
d	D	H	D₁	D₂	n₁	n₂	φ1	φ2	D₃	d₁	H₁	h	n₃	φ3	m	da	Z	b	x	Designations	Basic load ratings (kN) Coa	Mass (kg)
398	602	75	566	434	20	20	18	18	499	501	65	10	4	M10×1	5	365	74	60	0.5	113.25.500.**	1040	80
695	920	90	870	735	30	30	18	18	800	804	76	4	3	10	7	658	96	65	0	2797/695G2	1610	175
760	1000	95	956	800	24	24	20	20	878	882	82	15	4	M10×1	8	718.18	91	70	0.35	2797/760G2	2370	206
778	1022	82	978	822	30	30	22	22	898.5	901.5	72	10	6	M10×1	8	736	93	65	0.5	113.28.900.**	2090	190
870	1180	115	1125	920	18	18	26	26	1023	1027	100	15	2	M8×1	8	828.8	105	90	0.3	2797/870G2	2920	374
875	1170	95	1120	930	24	24	22	22	1018	1022	82	15	4	M10×1	8	830.1	105	70	0.35	2797/875G2	2760	297
955	1200	90	1160	1000	36	18	18	18	1088	1092	76	10	4	M8×1	8	908.8	115	72	0.3	2797/955G	2540	245
955	1200	90	1160	1000	36	18	18	18	1088	1092	76	10	4	M8×1	8	908.8	115	72	0.3	2797/955G2	2540	245
1010	1200	90	1160	1041	36	20	22	M20	1088	1092	76	10	2	M8×1	10	962	97	72	0.6	2797/1010G2	2540	199
1010	1200	90	1160	1041	36	20	22	M20	1088	1092	76	10	2	M8×1	10	962	97	72	0.6	2797/1010GK	2540	199
1278	1595	120	1535	1335	36	36	26	26	1428	1432	106	14	6	M10×1	12	1221.14	103	90	0.35	2797/1278G2	3980	585
1400	1715	110	1660	1460	40	40	26	M24	1558	1562	95	15	4	M10×1	10	1330	135	90	0	2792/1400G2K	5970	587
2000	2420	160	2350	2070	48	48	33	M30	2207	2213	140	20	6	M10×1	14	1913.5	138	120	0.3	2792/2000G2	10840	1607
2240	2670	160	2600	2320	54	54	35	M36	2457	2463	140	20	6	M12×1.25	16	2154.5	136	120	0.3	2792/2240G	14410	1798
2300	2800	208	2710	2390	42	48	38	M36	2535	2545	180	18	6	M10×1	20	2162.75	110	175	0	3-940G	17430	2756
2680	3325	300	3242	2754	32	32	33	33	2996	3000	270	30	4	M16×1.5	16	2592	164	180	0	2797/2680G	3587	6320
	3325	300	3242	2754	48	48	33	33	2996	3000	270	30	4	M16×1.5	16	2592	164	180	0	2797/2680GY	3587	6320
	3325	300	3247	2754	32	32	33	33	2996	3000	270	30	4	M16×1.5	16	2592	164	180	0	2797/2680GK	3035	6641
2922	3376	134	3286	3014	56	56	45	45	3147.5	3152.5	122	12	8	M10×1	20	2820	142	110	0.5	113.50.3150.**	13800	2150
2922	3376	134	3286	3014	56	56	45	45	3147.5	3152.5	122	12	8	M10×1	22	2816	129	110	0.5	114.50.3150.**	13800	2150
3322	3776	134	3686	3414	56	56	45	45	3547.5	3552.5	122	12	8	M10×1	20	3220	162	110	0.5	113.50.3550.**	15700	2470
3322	3776	134	3686	3414	56	56	45	45	3547.5	3552.5	122	12	8	M10×1	22	3212	147	110	0.5	114.50.3550.**	15700	2470
3850	200	3720	3420	60	60		45	45	3568	3572	180	20	12	Z1/4in	22	3206.388	147	158	0.35	3-943G2	18060	4520
3772	4226	134	4136	3864	60	60	45	45	3997.5	4002.5	122	12	10	M10×1	22	3652	167	110	0.5	113.50.4000.**	17600	2800
3772	4226	134	4136	3864	60	60	45	45	3997.5	4002.5	122	12	10	M10×1	25	3650	147	110	0.5	114.50.4000.**	17600	2800
4272	4726	134	4636	4364	60	60	45	45	4497.5	4502.5	122	12	10	M10×1	22	4158	190	110	0.5	113.50.4500.**	19800	3100
4272	4726	134	4636	4364	60	60	45	45	4497.5	4502.5	122	12	10	M10×1	25	4150	167	110	0.5	114.50.4500.**	19800	3100
