Four Point Contact Ball Slewing Bearing (Internal Gear)

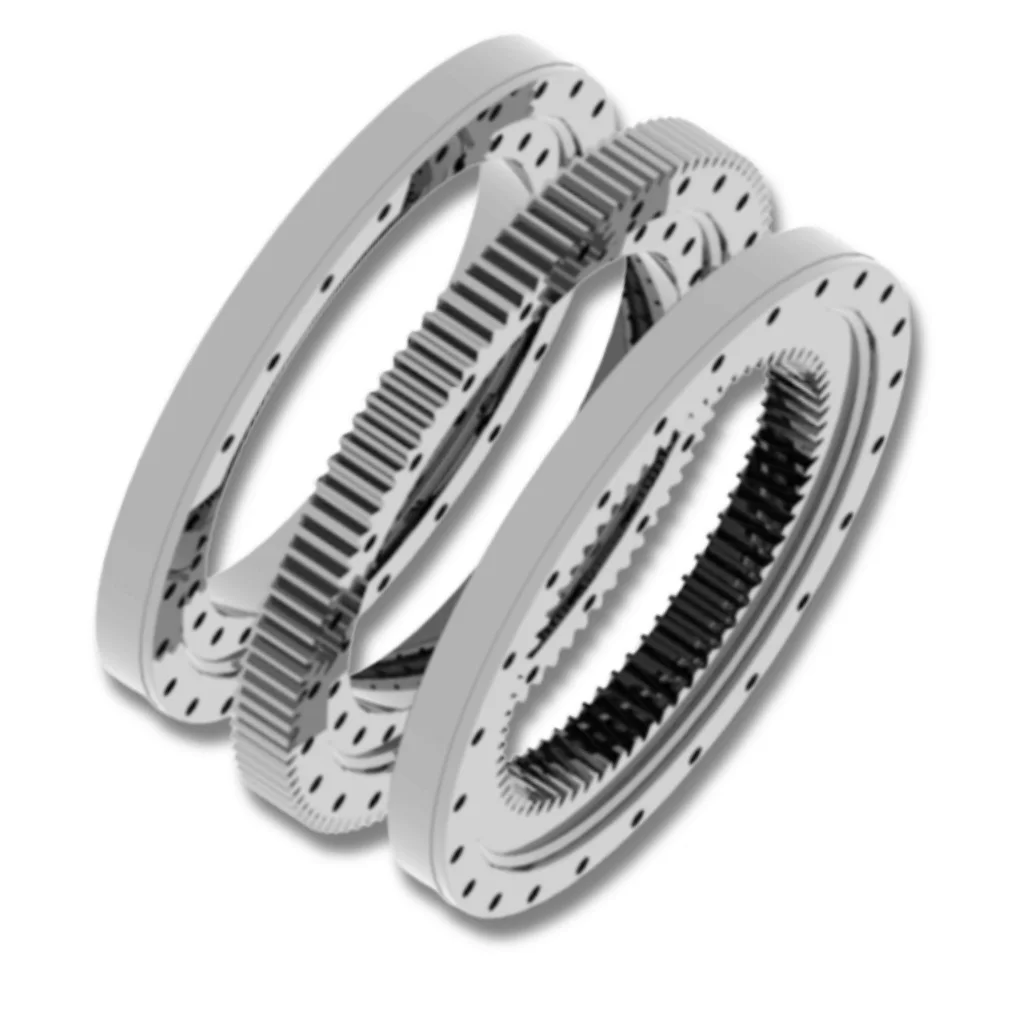

PMK Four Point Contact Ball Slewing Bearings with Internal Gear integrate precise load support and internal gear drive capability within a compact housing. The four-point contact geometry provides bidirectional axial load support while the internal gear enables compact drive integration for precision rotary mechanisms.

Key benefits

Integrated internal gear for compact drive systems.
Bidirectional axial load and moderate radial load capability.
High positioning accuracy and smooth motion.
Lightweight, space-saving construction.
Low friction and minimal backlash gear meshing.

Applications

CNC indexing tables and precision rotary actuators.
Light construction machinery and automation systems.
Robotics, packaging, and inspection systems.
Compact drive mechanisms requiring integrated gearing.

Request Quote (RFQ)

Specifications

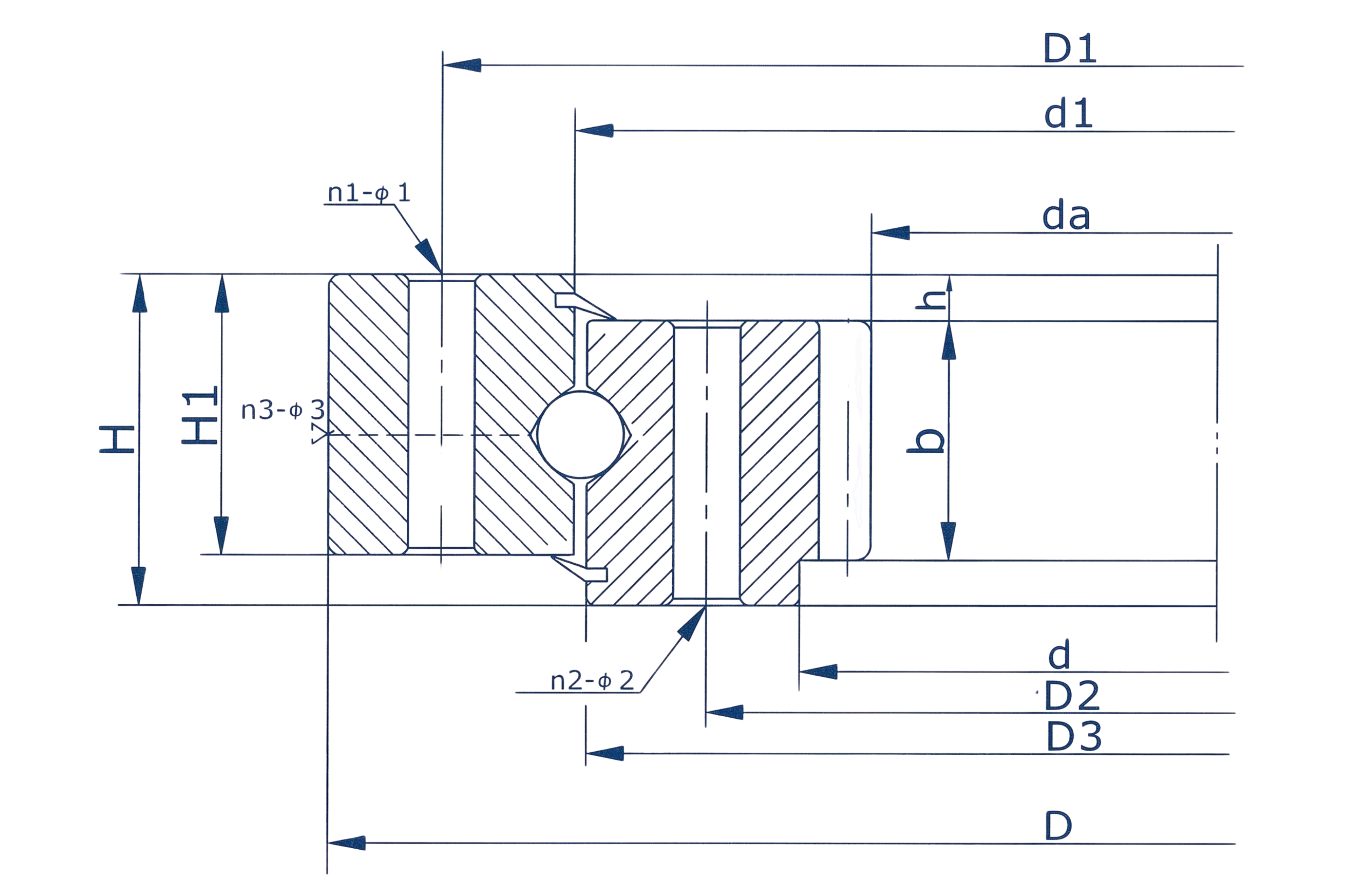

Boundary dimensions (mm)			Mount dimensions (mm)						Structure dimensions (mm)						Gear constants (mm)					Designations	Basic load ratings (kN) Coa	Mass (kg)
d	D	H	D₁	D₂	n₁	n₂	φ1	φ2	D₃	d₁	H₁	h	n₃	φ3	m	da	Z	b	x	Designations	Basic load ratings (kN) Coa	Mass (kg)
458	662	80	626	494	20	20	18	18	558.5	561.5	70	10	4	M10×1	5	425	86	60	+0.5	013.30.560.**	1440	94
528	732	80	696	564	24	24	18	18	628.5	631.5	70	10	4	M10×1	6	492	83	60	+0.5	013.30.630.**	1870	110
608	812	80	776	644	24	24	18	18	708.5	711.5	70	10	4	M10×1	6	570	86	60	+0.5	013.30.710.**	2120	120
678	922	100	878	722	30	30	22	22	798.5	801.5	90	10	6	M10×1	8	632	80	80	+0.5	013.40.800.12	3130	256
778	1022	100	978	822	30	30	22	22	898.5	901.5	90	10	6	M10×1	8	736	93	80	+0.5	013.40.900.**	3550	240
-	1200	56	1170	1044	16	24	17.5	10.5	1088	1092	46	12	4	M8×1	6	985	166	44	0	3-646G2	2100	84.1
1210	1530	122	1480	1260	40	40	26	26	1368	1372	108	12	4	M10×1	10	1164	118	80	0	2787/1210G2	7130	540
1400	1715	110	1660	1460	24	24	M20	M20	1558	1562	95	15	2	M12×1.25	6	1364.5	230	77	-0.35	2787/1400GK	3650	545
1400	1715	110	1660	1460	24	24	23	23	1558	1562	95	15	2	M10×1	6	1364.5	230	77	-0.35	2787/1400GK1	3650	545
1440	1780	100	1730	1494	48	48	22	M20	1618	1622	85	10	4	M12×1.25	8	1400	177	50	0	2787/1440	5030	554
	1780	100	1730	1494	48	48	22	M20	1618	1622	85	10	4	M12×1.25	8	1400	177	50	0	2787/1440G	5780	554
	1780	104	1730	1494	48	48	22	M20	1613	1627	87	10	6	M12×1.25	8	1400	177	52	0	2768/1440G	5780	555
1525	1875	140	1815	1585	42	42	29	29	1698	1702	122	17	4	M12×1.25	16	1452.33	92	110	+0.35	2787/1525G	8730	1019
1790	2050	112	2006	1847	36	72	22	22	1925	1926	92	12	18	M10×1	16	1712	108	100	-0.5	2788/1712	6040	663
2230	2488	160	2445	2275	48	48	M20	M22	2337.5	2342.5	135	5	8	ZG1/4in	18	2144.25	121	145	0	2789/2230	12470	1114
2240	2500	140	2454	2280	56	56	M24	M24	2357.5	2362.5	115	5	8	M14×1.5	18	2145.6	121	125	0	2789/2240G2	8560	1161
2325	2678	144	2610	2391	56	56	33	33	2497.5	2502.5	132	12	8	M10×1	18	2232	125	120	+0.5	013.60.2500.**	15000	1400
2325	2678	144	2610	2391	56	56	33	33	2497.5	2502.5	132	12	8	M10×1	20	2220	112	120	+0.5	014.60.2500.**	15000	1400
2625	2978	144	2910	2691	56	56	33	33	2797.5	2802.5	132	12	8	M10×1	18	2520	141	120	+0.5	013.60.2800.**	16800	1600
2625	2978	144	2910	2691	56	56	33	33	2797.5	2802.5	132	12	8	M10×1	18	2520	127	120	+0.5	014.60.2800.**	16800	1600
2735	2990	160	2954	2770	48	48	M20	M24	2835	2845	135	5	8	ZG1/4in	22	2624.62	121	144	0	2789/2735	15590	1457
2922	3376	174	3286	3014	56	56	45	45	3147.5	3152.5	162	12	8	M10×1	20	2820	142	150	+0.5	013.75.3150.**	23800	2800
2922	3376	174	3286	3014	56	56	45	45	3147.5	3152.5	162	12	8	M10×1	22	2816	129	150	+0.5	014.75.3150.**	23800	2800
3322	3776	174	3686	3414	56	56	45	45	3547.5	3552.5	162	12	8	M10×1	20	3220	162	150	+0.5	013.75.3550.**	26900	3200
3322	3776	174	3686	3414	56	56	45	45	3547.5	3552.5	162	12	8	M10×1	22	3212	147	150	+0.5	014.75.3550.**	26900	3200
3772	4226	174	4136	3864	60	60	45	45	3997.5	4002.5	162	12	10	M10×1	22	3652	167	150	+0.5	013.75.4000.**	30200	3600
3772	4226	174	4136	3864	60	60	45	45	3997.5	4002.5	162	12	10	M10×1	25	3650	147	150	+0.5	014.75.4000.**	30200	3600
4272	4726	174	4636	4364	60	60	45	45	4497.5	4502.5	162	12	10	M10×1	22	4158	190	150	+0.5	013.75.4500.**	34100	4000
4272	4726	174	4636	4364	60	60	45	45	4497.5	4502.5	162	12	10	M10×1	25	4150	167	150	+0.5	014.75.4500.**	34100	4000
