XL-1000/1500

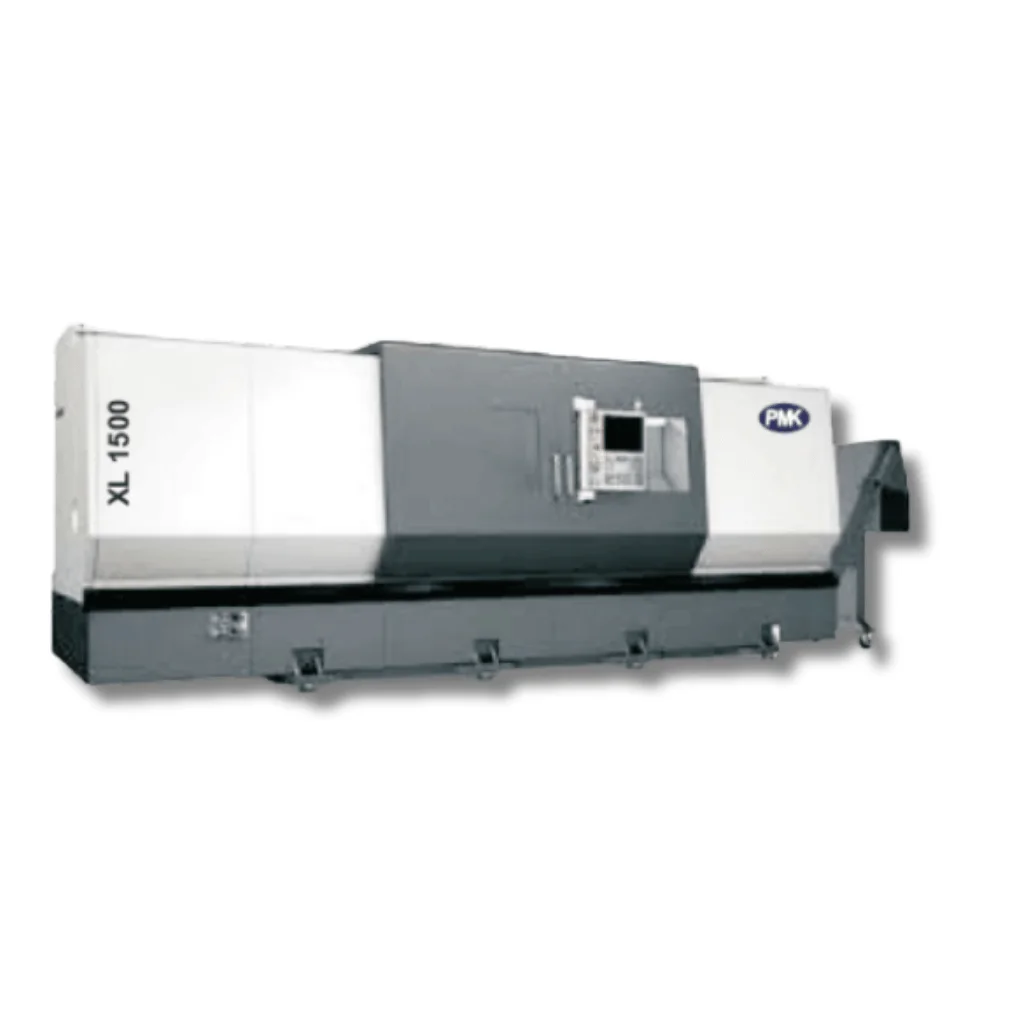

PMK XL-1000 / 1500 CNC turning centres are engineered for machining large and long workpieces requiring high rigidity and accuracy. These machines feature a robust bed design, precision-balanced spindle, and high-capacity tool system suited for continuous heavy-load operations.
Key benefits
- Ideal for long shafts and large-diameter workpieces.
- High-torque spindle for demanding roughing operations.
- Heavy-duty slideways and reinforced base for superior stability.
- Programmable tailstock and steady-rest options for long components.
- Reliable performance under continuous duty conditions.
Applications
- Heavy engineering, power generation, and marine industries.
- Turbine shafts, rollers, and large mechanical parts.
- Precision turning of castings and forgings.
- Custom high-load machining applications.
Specifications
| FEATURES |
|---|
| LM Guides For Both Axes |
| SIEMENS, FANUC, DELTA CNC Controller |
| Cartridge Type Spindle |
| 12 Station Turret |
| Full Enclosure |
| STANDARD FEATURES |
|---|
| AC Spindle Drive & AC Servo Drive |
| Roller Guide Ways |
| Hardened and Ground Ball Screw |
| Hydraulic Chuck with Actuating Cylinder |
| 12 Station Bi Directional Turret |
| Tail Stock with MT Taper |
| Coolant System |
| Turning Tool Holders |
| Boring Bar Holders |
| OPTIONAL ACCESSORIES |
|---|
| Hollow Cylinder |
| Hydraulic Collet |
| Bar Puller |
| Bar Feeder |
| Chip Conveyor |
| Servo Turret |
| Roller Guide |
| Milling Spindle RPM - 4500 |
| Milling Spindle Power - 1.5 Kw Or More |
| CAPACITY | XL 1000/1500 | |
|---|---|---|
| MAX. TURNING DIA. | 400/500 mm | |
| MAX. TURNING LENGTH | 1000/1500 mm | |
| SWING OVER BED | 600 mm | |
| STD. TURNING DIA. | 350 mm | |
| MAIN SPINDLE | ||
| SPINDLE NOSE | A2-8 | |
| BORE THROUGH SPINDLE | 75 mm | |
| BAR CAPACITY | 62 mm | |
| CHUCK SIZE | 305 mm | |
| FRONT BEARING BORE | 100 mm | |
| SPINDLE DRIVE | ||
| SPINDLE MOTOR POWER | 11/15 KW | |
| SPEED RANGE (RPM) | 750-2500 | |
| AXES SLIDES | ||
| X-AXIS STROKE | 225/275 mm | |
| Z-AXIS STROKE | 1050/1550 mm | |
| RAPID TRAVERSE: X-AXIS | 24 M/Min. | |
| RAPID TRAVERSE: Z-AXIS | 24 M/Min. | |
| TAIL STOKE | ||
| QUILL DIAMETER | 100 mm | |
| QUILL STROKE | 100 mm | |
| TAPER IN QUILL | MT5 | |
| TURRET | ||
| TURRET TYPE | Ele. Mech/Hyd. | |
| TURRET MODEL | BTP 100 | |
| NO. OF STATIONS | 12 | |
| MAX. BORING BAR DIA. | 40 mm | |
| TOOL CROSS SECTION | 25 x 25 mm | |
| ACCURACY | ||
| POSITION ACCURACY | 0.015 mm | |
| REPEATABILITY | ± 0.003 mm | CONTROL SYSTEM |
| Siemens 828D / Fanuc Oi Mate TD | ||
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
