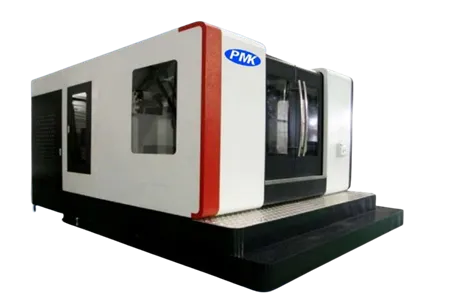

Horizontal Machining Centre
PMK Horizontal Machining Centres are engineered for high-precision, heavy-duty applications. Featuring robust construction, advanced thermal stability, and high-torque spindles, these machines deliver exceptional accuracy and productivity for complex parts in aerospace, automotive, and heavy engineering industries.
Key benefits
- Robust cast iron construction with superior vibration damping.
- High-torque spindle options for heavy-duty cutting of tough materials.
- Advanced thermal management system for consistent accuracy during long runs.
- 4-axis or 5-axis rotary table options for complex part geometries.
- Integrated pallet changer for unmanned operation and increased productivity.
Applications
- Aerospace components requiring high precision and complex geometries.
- Automotive engine blocks, transmission cases, and structural parts.
- Heavy engineering components and large industrial parts.
- High-precision mold and die bases.
- Aerospace components requiring high precision and complex geometries.
- Automotive engine blocks, transmission cases, and structural parts.
- Heavy engineering components and large industrial parts.
- High-precision mold and die bases.
Specifications
| SPECIFICATIONS | HMC-600 |
|---|---|
| Capacity | |
| X Axis - Travel | 1000 mm |
| Y Axis - Travel | 850 mm |
| Z Axis - Travel | 925 mm |
| Table Size | 630 X 630 mm |
| Max. Load On Table | 800 kg |
| No. Of Position | 1° x 360 degree (Option) |
| Spindle | |
| Spindle Nose | BT-40/BT-50 |
| Spindle Motor | 11/15 Kw |
| Spindle Speed (rpm) | 100 - 6000 |
| Rapid Traverse | |
| Rapid Traverse | 24/24/24 |
| No. Of Tools | |
| No. Of Tools | 40/60* |
| Accuracy | |
| Position Accuracy | 0.015 mm |
| Repeatability | ±0.003 mm |
| CNC Control System | |
| SIEMENS / FANUC | |
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
