VTL-400

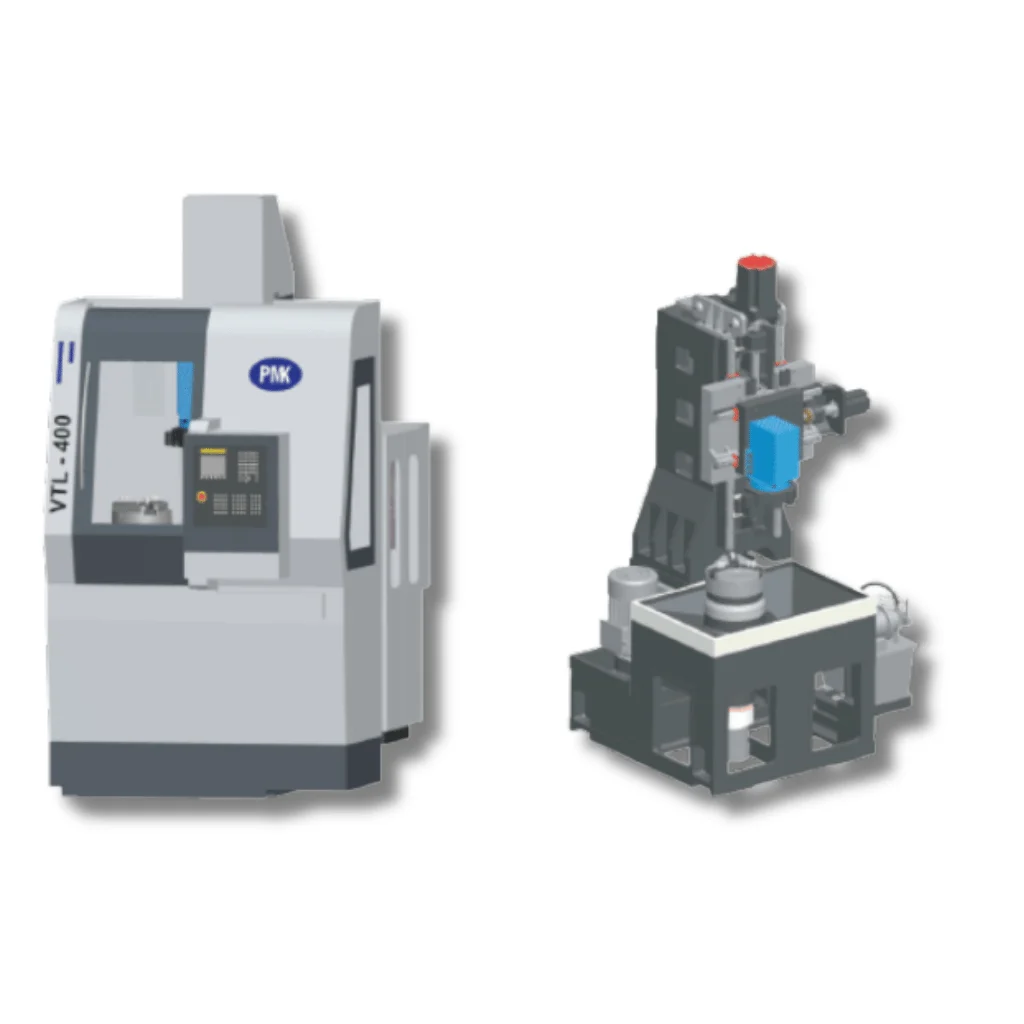

PMK VTL-400 is a compact vertical turning lathe (VTL) designed for precision machining of disc-type and short cylindrical components. Its vertical configuration ensures stable cutting forces and efficient chip removal.
Key benefits
- Compact, rigid structure ideal for medium-sized workpieces.
- Vertical spindle provides excellent rigidity and cutting accuracy.
- Smooth axis movement with precision feed control.
- Simplified chip flow and coolant management.
- Designed for high-speed turning with excellent surface finish.
Applications
- Automotive brake discs, flanges, and gears.
- Valve bodies and pump housings.
- Aerospace and defense component machining.
- Toolroom and general engineering applications.
Specifications
| FEATURES |
|---|
| Roller Guides For Both Axes |
| SIEMENS, FANUC CNC Control System |
| Cartridge Type Spindle |
| 8 Station Turret |
| Full Enclosure |
| STANDARD FEATURES |
|---|
| AC Spindle Drive & AC Servo Drive |
| Roller Guide Ways |
| Hardened and Ground Ball Screw |
| Hydraulic Chuck with Actuating Cylinder |
| 8 Station Bi Directional Turret |
| Coolant System |
| Turning Tool Holders |
| Boring Bar Holders |
| OPTIONAL ACCESSORIES |
|---|
| Hydraulic Turret |
| Chip Conveyor |
| CAPACITY | VTL - 400 | |
|---|---|---|
| SWING OVER BED | 500 mm | |
| MAX. TURNING DIA. | 400 mm | |
| MAX. TURNING LENGTH | 400 mm | |
| MAX. WORK PIECE WEIGHT | 200 Kg | |
| MAIN SPINDLE | ||
| SPINDLE NOSE | A2-8 | |
| SPINDLE MOTOR | 9 - 11 Kw | |
| SPEED RANGE | 500 - 1550 RPM | |
| SLIDE | ||
| X AXIS TRAVEL | 400 mm | |
| Z AXIS TRAVEL | 500 mm | |
| TURRET | ||
| NO. OF STATIONS | 8 | |
| ACCURACY | ||
| POSITION ACCURACY | 0.015 mm | |
| REPEATABILITY | ± 0.003 mm | |
| CONTROL SYSTEM | ||
| CONTROL SYSTEM | SIEMENS / FANUC | |
* Roller Guide for both Axes
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
