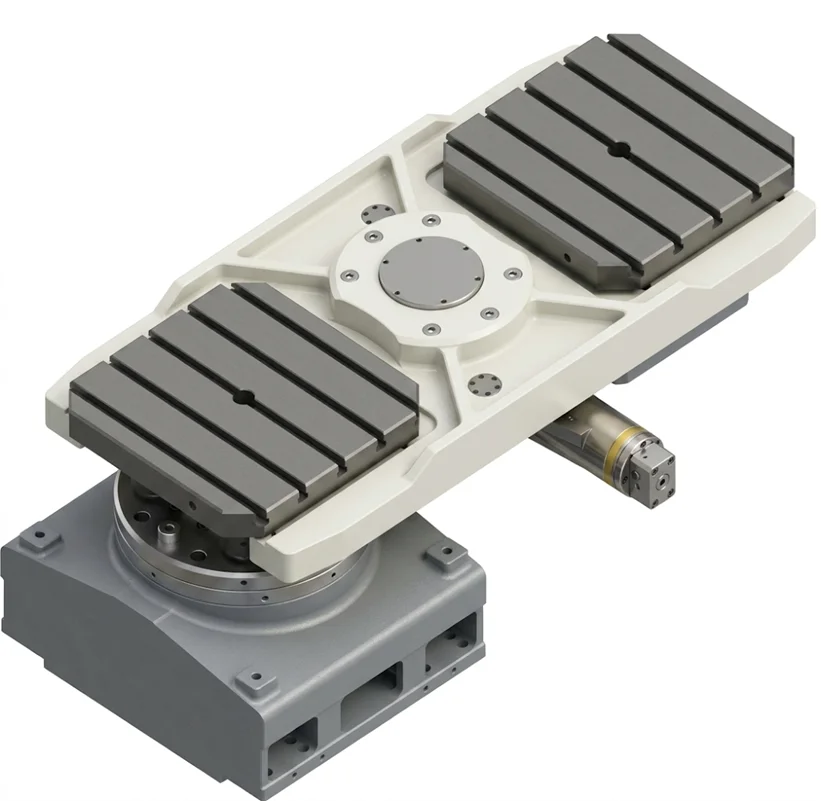

The PMK CNC Horizontal Rotary Table is engineered for heavy-duty, high-throughput manufacturing environments. Built with a formidable direct-drive torque motor (DDR), this horizontal workholding powerhouse delivers ultra-precise positioning alongside substantial load-carrying capacity. A defining feature of this system is its integrated two-pallet configuration, designed to drastically minimize spindle idle time. While one pallet is engaged in the machining zone, the operator can safely set up the next workpiece on the secondary pallet, enabling continuous, uninterrupted production. Boasting sub-micron repeatability and rapid indexing speeds, it serves as the ideal foundation for Horizontal Machining Centers (HMCs) or specialized automated manufacturing cells tackling large, heavy castings and complex prismatic parts.

Key benefits

• Dual-Pallet System: Enables continuous machining, drastically reducing setup downtime.
• Direct Drive Torque Motor (DDR): Offers zero-backlash, high-speed rotation and seamless indexing.
• High Load Capacity: Robust foundation reliably supports workpiece loads up to 1000 kg.
• Ultra-Precise Positioning: Achieves ±0.008 mm repeatability utilizing 360,000 distinct indexing positions.
• Rigid Horizontal Orientation: Specifically scaled for large, bulky components and multi-side machining.

Applications

• Heavy casting, engine block, and large valve body multi-face machining.
• Integration into Horizontal Machining Centers (HMCs) for flexible manufacturing systems.
• High-volume automotive and aerospace component production cells.
• Automated pallet-pool setups requiring rigid, fully programmable indexing.

Technical highlights

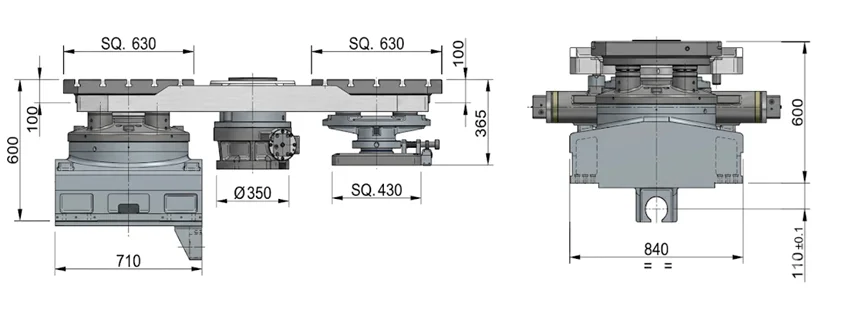

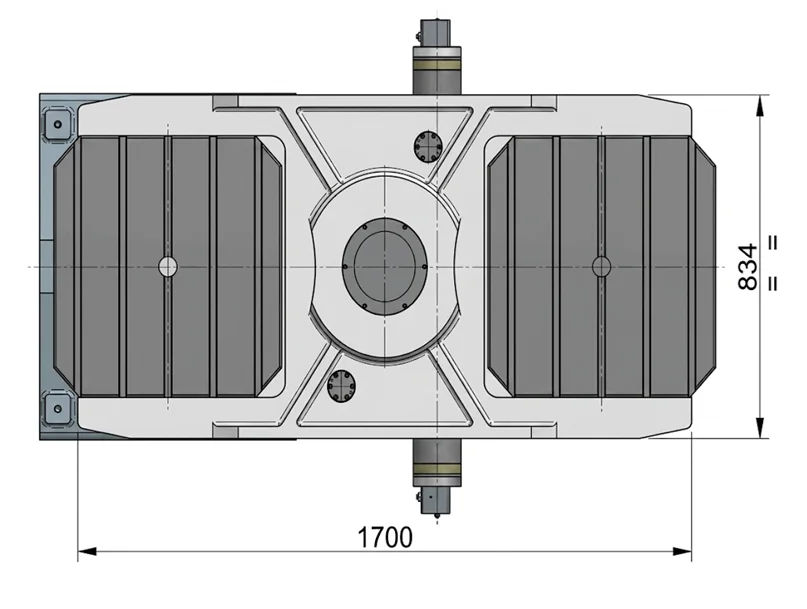

• Large 630 x 630 mm pallet size with standardized T-slot dimensions.
• Rapid 25-second pallet indexing/swapping time.
• Advanced torque motor drive allowing up to 50 RPM continuous rotation speed.
• Capable of 0.001-degree micro-indexing resolution.
• Built-in hydraulic or pneumatic clamping lines for automated fixture actuation.
