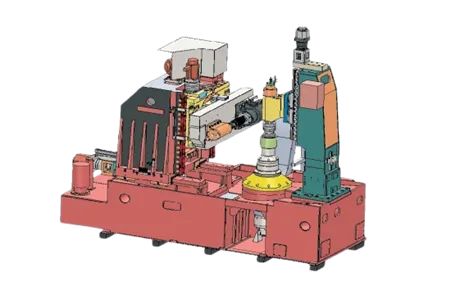

AGH60-CNC Hor Gear Hobbing Machine
The AGH60-CNC is a high-performance Horizontal Gear Hobbing Machine designed for precision gear manufacturing. Equipped with a 4+1 axis CNC control system, it provides exceptional accuracy and flexibility for machining complex gear profiles. With its robust spindle drives and optimized traverse speeds, the AGH-60 ensures maximum productivity and reliability for your production needs.
Special Features
- CNC SYSTEM: Fanuc/Siemens
- HSS high speed hobs capability included
- Autoloading & Unloading available as an option
Specifications
| AGH60-CNC Hor Gear Hobbing Machine: M1.5/Dia 60 | |||
|---|---|---|---|
| Machine Specification Sheet | |||
| Sr. No. | DESCRIPTIONS- Machine specifications: | Unit | AGH-60 |
| 1 | No:of CNC Axes, (X-7Nm,Y-7Nm,Z-7Nm,C-7Nm; 4+1 Spl motor | 4+1 | |
| 2 | Min/Max work piece diameter | mm | 10//100 |
| 3 | Max work piece length of gear Teeth: | mm | 200 |
| a | Manual loading | mm | 230 |
| b | Auto loading | mm | 165 |
| 4 | Max module in steel(UTS 700 Mpa) | mm | 0.3 ~ 1.5 |
| 5 | Max Axial slide travel: Z axis stroke | mm | 350 |
| 6 | Max radial travel: X axis stroke | mm | 140 |
| 7 | Max Tangential travel: Y axis stroke | mm | 120 |
| 8 | Minimum No:of Teeth | 3 | |
| 9 | Table diameter | mm | 80 |
| 10 | Centre distance between hob and work piece axes, min/max | mm | 06//70 |
| 11 | Min/Max hob dia | mm | 16//100 |
| 12 | Max hob length | mm | 120~180 |
| 13 | Hob head swivel angle | deg | ±45 deg |
| 14 | Hob spindle locating dia for hob arbor: OD CLAMPING | mm | 25 |
| 15 | Max hob shift | mm | 100 |
| 16 | Tail stock axis: stroke-clamping pr (N) | mm/N | 200//2500 |
| 17 | Hob spindle speed(inf variable), | rpm | 3000 |
| 18 | Rapid traverse, axial | m/min | 5 |
| 19 | Rapid traverse, radial | m/min | 5 |
| 20 | Rapid traverse, tangential | m/min | 2 |
| 21 | Feed, axial | mm/wr | 4 |
| 21 | Feed, radial | mm/wr | 4 |
| 22 | Feed, tangential | mm/wr | 1 |
| 23 | Max driving power, hob spindle: S1-7.2kW//S6--15kW | kW | 15 (max) |
| 24 | Max torque, hob spindle; | Nm | 45 |
| 25 | Max driving power, work spindle | kW | 0.9 |
| 26 | Max torque, work spindle | Nm | 11 |
| 27 | Max rpm, work spindle | rpm | 400~1000 |
| 28 | Total connected load | kVA | 25 |
| 29 | Weight of the machine, approx | kg | 4000 |
| 30 | Special Features | ||
| a | CNC SYSTEM: | Fanuc/Siemens | |
| b | HSS high speed hobs: | Yes | |
| c | Autoloading & Unloading | option | |
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
