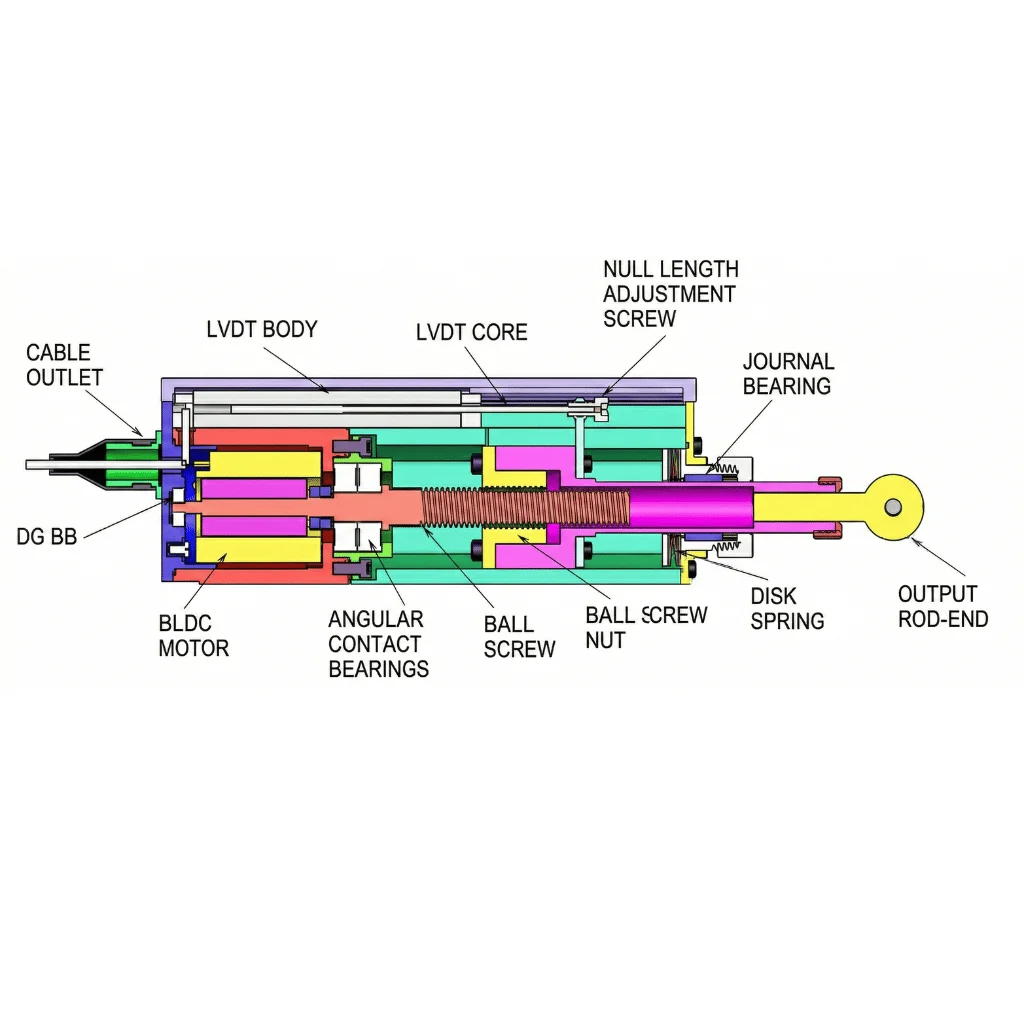

Linear Electro-Mechanical Actuator
The Linear Electro-Mechanical Actuator is a high-precision positioning system driven by a permanent magnet BLDC motor. This advanced drive unit features integrated Hall sensors with 120-degree placement and a motor resistance of ≤ 0.7 Ohm, ensuring smooth and responsive motion. The transmission is handled by a premium Stainless Steel Ball lead screw or an optional Roller screw configuration, with a fine screw lead of ≤ 2 mm for micron-level linear accuracy.
For critical positional awareness, the system utilizes a sophisticated 6-wire LVDT sensor providing feedback across a ±25mm stroke range with a sensitivity of 9mV/V/mm. The mechanical architecture is reinforced by Barden-make angular contact bearings and features an internal, non-jamming soft stop mechanism utilizing specialized disk springs. This robust internal assembly is designed to maintain extreme calibration stability under high dynamic stress.
Operating at a total assembly weight of ≤ 1.7 kg, the actuator is designed for seamless integration via a body-mounted interface and FRANKENJURA rod ends. Electrical connectivity is managed through a ruggedized D38999/26WD19PN pigtail connector, supporting mission durations of up to 80 minutes. The system is controlled by an external servo unit operating at a 20 kHz switching frequency with a defined current limit of -8 to 9 Amp.
Specifications
| Sl. No. | Description / Parameter | Specification / Value |
|---|---|---|
| 1 | Type of Actuator | Linear electro-mechanical actuator |
| 2 | Type of Motor | Permanent magnet, BLDC motor, Hall sensor, 120 degree placed with 1 meter cable length. Motor resistance ≤ 0.7 Ohm |
| 3 | Type of Transmission Mechanism | Stainless Steel Ball lead screw / Roller screw [Screw lead ≤ 2 mm] |
| 4 | Type of Position Sensor | 6-wire LVDT with 1 meter cable length (Stroke = ±25mm, 2.2 Vrms / 3.5kHz, sensitivity = 9mV/V/mm) or Equivalent |
| 5 | Type of Actuator Mount | Body mounted as per sl.no. 4 |
| 6 | Type of End Stops | Internal, non-jamming soft stop by using two disk springs. IS No. DS ID20.4xOD40x1 |
| 7 | Type of Cable | Pig-tail of length ≈ 1 meter (Refer sl.no. 5 for detail specs) |
| 8 | Connector Type | Pigtail connector D38999/26WD19PN |
| 9 | Type of Rod End | FRANKENJURA EN4036R06EAT (M10X1.25p) or equivalent |
| 10 | Angular Contact Bearing Pair | S 200H DM R2 C GJ204 – Barden Make or equivalent |
| 11 | Weight | ≤ 1.7 kg |
| 12 | Servo Controller | External of actuator |
| 13 | Switching Frequency of Controller | ≈ 20 kHz |
| 14 | Current Limit of Controller | -8 to 9 Amp |
| 15 | Duration of Operation | 70 – 80 minutes |
