Yaw Bearing and Blade Bearings (Internal Gear)

PMK Yaw and Blade Bearings with Internal Gear integrate the slewing drive within the bearing to achieve compact, efficient motion transmission for wind turbine systems.

The internal gear design enables smooth torque transfer while protecting the gear teeth from environmental exposure, ensuring long-term operational stability.

Key benefits

Integrated internal gear for compact yaw and pitch drive systems.
High load capacity with excellent rigidity and stability.
Reduced wear and noise due to optimized gear meshing.
Protected gear interface enhances durability in outdoor use.
Ideal for space-limited nacelle or hub designs.

Applications

Wind turbines and renewable energy platforms.
Large rotating machinery with enclosed drives.
Industrial cranes, solar trackers, and marine rotation systems.
Automation and energy conversion assemblies.

Request Quote (RFQ)

Specifications

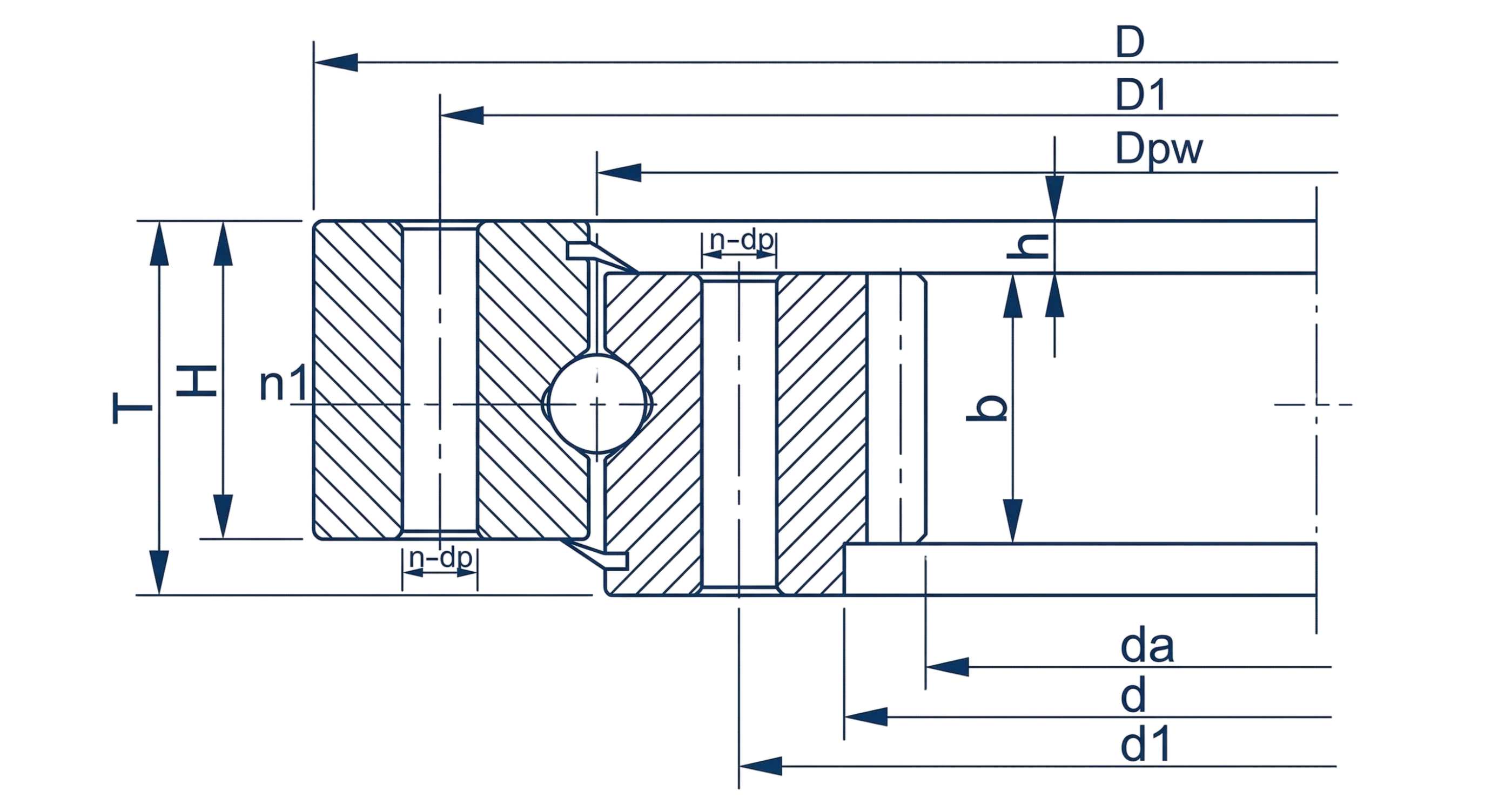

Boundary dimensions (mm)					Mount dimensions (mm)			Number of holes		Gear parameters				Designation
d	D	T	H	h	D₁	d₁	d_n	n	n₁	m	da (mm)	z	b (mm)	Designation
458	662	80	70	10	626	494	18	20	4	5	427	86	60	013.30.560
458	662	80	70	10	626	494	18	20	4	6	428.4	72	60	014.30.560
528	732	80	70	10	696	564	18	24	4	6	494.4	83	60	013.30.630
528	732	80	70	10	696	564	18	24	4	8	491.2	62	60	014.30.630
608	812	80	70	10	776	644	18	24	4	6	572.4	96	60	013.30.710
608	812	80	70	10	776	644	18	24	4	8	571.2	72	60	014.30.710
678	922	100	90	10	878	722	22	30	6	8	635.2	80	80	013.40.800
678	922	100	90	10	878	722	22	30	6	10	634	64	80	014.40.800
778	1022	100	90	10	978	822	22	30	6	8	739.2	93	80	013.40.900
778	1022	100	90	10	978	822	22	30	6	10	734	74	80	014.40.900
878	1122	100	90	10	1078	922	22	36	6	10	824	83	80	013.40.1000
878	1122	100	90	10	1078	922	22	36	6	12	820.8	69	80	014.40.1000
998	1242	100	90	10	1198	1042	22	36	6	10	944	95	80	013.40.1120
998	1242	100	90	10	1198	1042	22	36	6	12	940.8	79	80	014.40.1120
1110	1390	110	100	10	1337	1163	26	40	5	12	1048.8	88	90	013.45.1250
1110	1390	110	100	10	1337	1163	26	40	5	14	1041.6	75	90	014.45.1250
1140	1480	126	113	13	1400	1200	26	60/40	5	10	-	-	100	013.50.1300
1140	1480	126	113	13	1400	1200	26	60/40	5	12	-	-	100	014.50.1300
1260	1540	110	100	10	1487	1313	26	40	5	12	1192.8	100	90	013.45.1400
1260	1540	110	100	10	1487	1313	26	40	5	14	1195.6	86	90	014.45.1400
1460	1740	110	100	10	1687	1513	26	45	5	14	1391.6	100	90	013.45.1600
1460	1740	110	100	10	1687	1513	26	45	5	16	1382.4	87	90	014.45.1600
1660	1940	110	100	10	1877	1713	26	45	5	14	1573.6	113	90	013.45.1800
1660	1940	110	100	10	1877	1713	26	45	5	16	1574.4	99	90	014.45.1800
1825	2178	144	132	12	2110	1891	33	48	8	16	1734.4	109	120	013.60.2000
1825	2178	144	132	12	2110	1891	33	48	8	18	1735.2	97	120	014.60.2000
2065	2418	144	132	12	2350	2131	33	48	8	16	1990.4	125	120	013.60.2240
2065	2418	144	132	12	2350	2131	33	48	8	18	1987.2	111	120	014.60.2240
2325	2678	144	132	12	2610	2391	33	56	8	18	2239.2	125	120	013.60.2500
2325	2678	144	132	12	2610	2391	33	56	8	20	2228	112	120	014.60.2500
2625	2987	144	132	12	2910	2691	33	56	8	18	2527.2	141	120	013.60.2800
2625	2987	144	132	12	2910	2691	33	56	8	20	2528	127	120	014.60.2800
2922	3376	174	162	12	3286	3014	45	56	8	20	2828	142	150	013.75.3150
2922	3376	174	162	12	3286	3014	45	56	8	22	2824.8	129	150	014.75.3150
3322	3776	174	162	12	3686	3414	45	56	8	20	3228	162	150	013.75.3550
3322	3776	174	162	12	3686	3414	45	56	8	22	3220.8	147	150	014.75.3550
3772	4226	174	162	12	4136	3864	45	60	10	22	3660.8	167	150	013.75.4000
3772	4226	174	162	12	4136	3864	45	60	10	25	3660	147	150	014.75.4000
