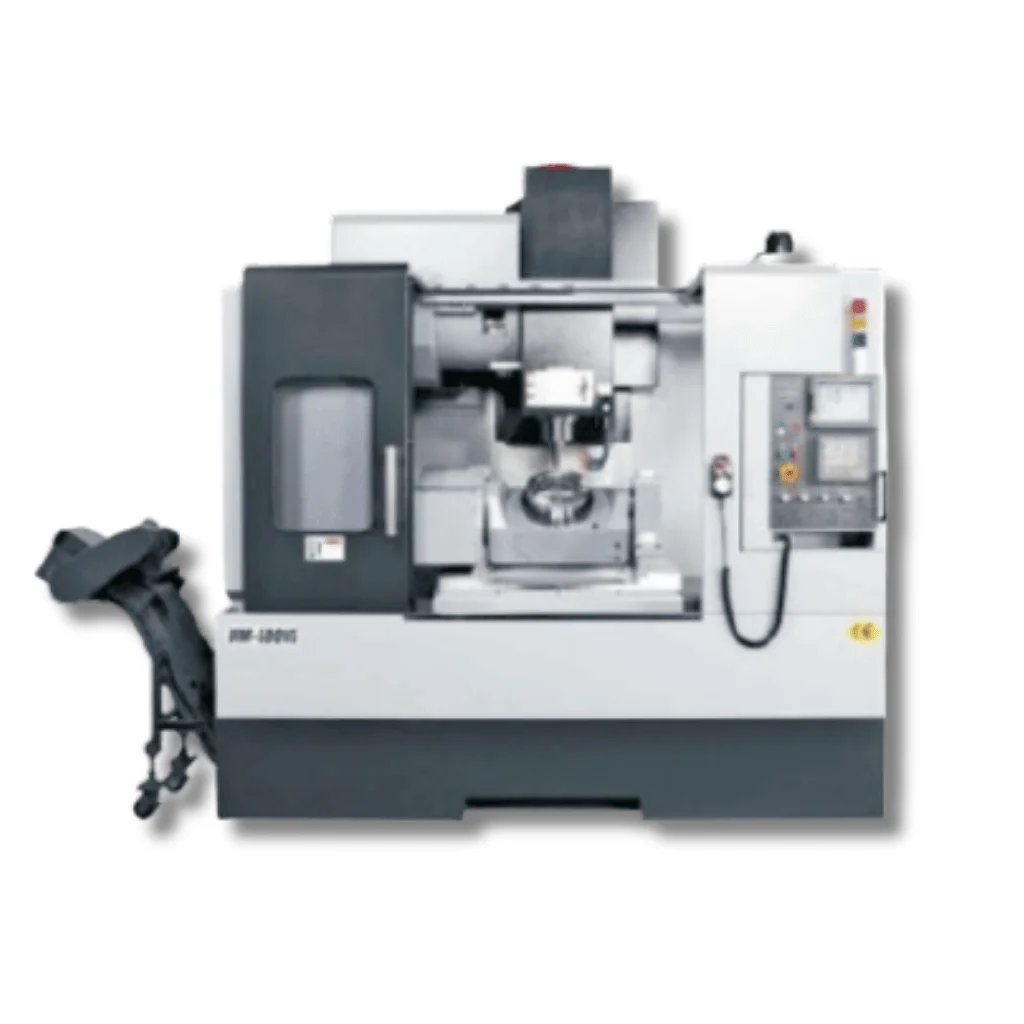

5 Axis Vertical Machining Centre

Vertical Machining Centre MC-5 is a compact yet powerful vertical machining centre designed for precision manufacturing and toolroom applications. It offers high productivity within a small footprint, making it suitable for small-to-medium-sized components that demand tight tolerances.

Key benefits

Compact structure with high rigidity for precision cutting.
High-speed spindle for superior surface finish and efficiency.
User-friendly CNC control and quick tool change system.
Precision ball screws and linear motion guides ensure smooth motion.
Ideal balance between speed, accuracy, and cost-effectiveness.

Applications

Toolroom and prototype machining.
Precision parts manufacturing for automotive and industrial sectors.
Mold components, fixtures, and general metalworking.
Small-batch or customized job machining.

Request Quote (RFQ)

Specifications

Table	MC - 5 - 200	MC - 5 - 250	MC - 5 - 320
Table Dimensions	Ø 200	Ø 250	Ø 320
Max. load in Table Horizontal (0°)	50 Kg	100 Kg	200 Kg
Max. load in Table Vertical (90°)	35 Kg	50 Kg	100 Kg
Traverse
X - Axis (mm)	600	800	1000
Y - Axis (mm)	450	500	600
Z - Axis (mm)	500	500	600
A Axis (deg.)	-110° / 10°	-110° / 10°	-110° / 10°
C Axis (deg.)	360°	360°	360°
Axis
Rapid (M/Min.)	24 / 24 / 20	24 / 24 / 20	24 / 24 / 20
Cutting Feed Rate (mm/min)	10,000	10,000	10,000
Spindle
Max. Speed (RPM)	6000 / 8000	6000 / 8000	6000 / 8000
Spindle Nose	BT.40 / HSK63A*	BT.40 / HSK63A*	BT.40 / HSK63A*
Spindle Power (KW)	7.5 / 11	7.5 / 11	7.5 / 11
Auto Tool Changer (ATC)
No. Of Tools	20/24*	20/24*	20/24*
Accuracy
Positioning Accuracy (X/Y/Z)	± 0.010	± 0.010	± 0.010
Repeatability (X/Y/Z)	± 0.003	± 0.003	± 0.003
CNC Control System	SIEMENS / FANUC
