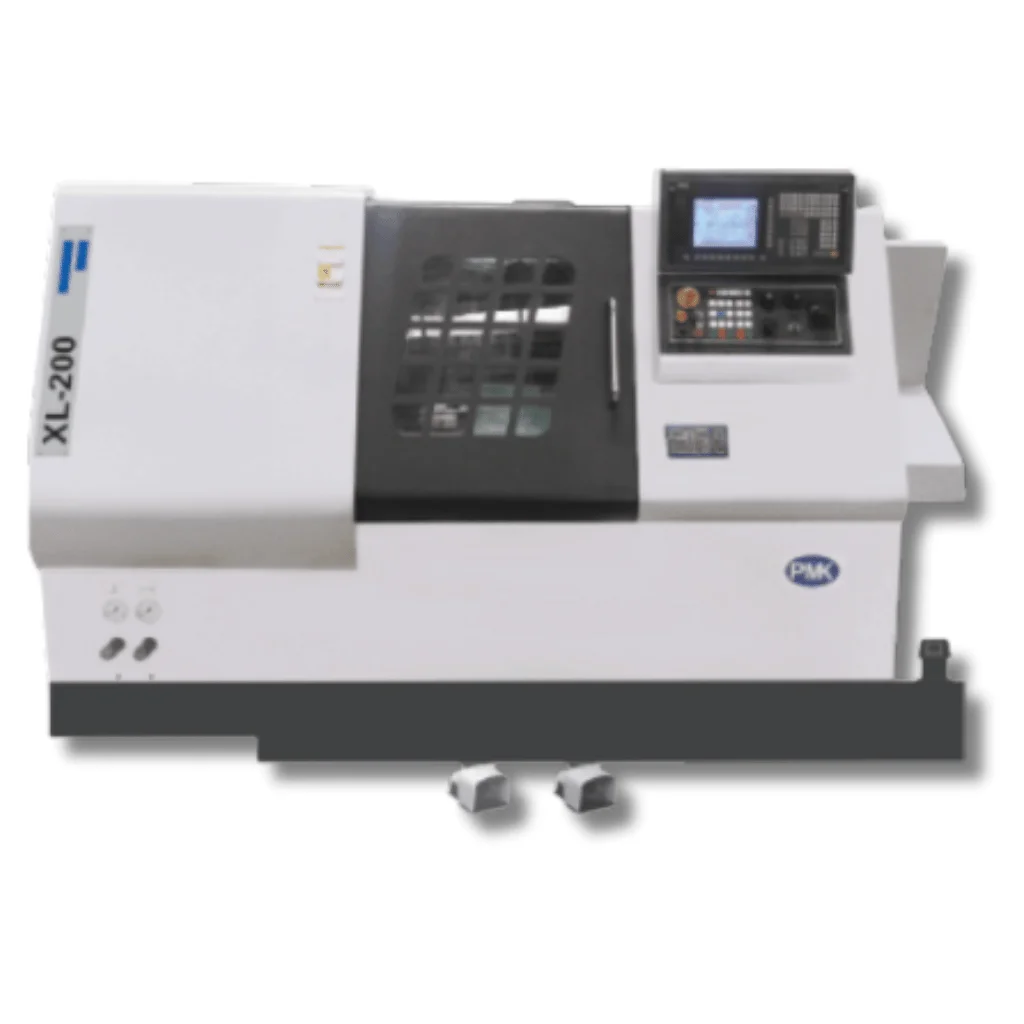

XL-200
PMK XL-200 is a large-capacity CNC turning centre designed for heavy-duty and precision machining of large parts. With a robust frame and powerful spindle, it delivers stable performance under high cutting loads and long tool engagement.
Key benefits
- High rigidity and load-bearing capability for large-diameter workpieces.
- Servo-driven turret and precision feed systems ensure smooth operation.
- Excellent chip removal and thermal stability during long cycles.
- Multi-axis control for complex contours and fine surface finishes.
- Customizable chuck and toolholder configurations for varied applications.
Applications
- Oil & gas, energy, and heavy engineering components.
- Large shafts, flanges, and cylindrical parts.
- Batch production of precision industrial parts.
- Heavy-duty machining with high torque demands.
Specifications
| FEATURES |
|---|
| LM Guides For Both Axes |
| SIEMENS, FANUC, DELTA CNC Controller |
| Cartridge Type Spindle |
| 8 Station Turret |
| Full Enclosure |
| STANDARD FEATURES |
|---|
| AC Spindle Drive & AC Servo Drive |
| Linear Motion Guide Ways |
| Hardened and Ground Ball Screw |
| Hydraulic Chuck with Actuating Cylinder |
| 8 Station Bi Directional Turret |
| Tail Stock with MT Taper |
| Coolant System |
| Turning Tool Holders |
| Boring Bar Holders |
| OPTIONAL ACCESSORIES |
|---|
| Hollow Cylinder |
| Hydraulic Collet |
| Bar Puller |
| Bar Feeder |
| Chip Conveyor |
| Servo Turret |
| Roller Guide |
| Milling Spindle RPM - 4500 |
| Milling Spindle Power - 1.5 Kw Or More |
| CAPACITY | XL-200 | |
|---|---|---|
| MAX. TURNING DIA. | 250 mm | |
| MAX. TURNING LENGTH | 500 mm | |
| SWING OVER BED | 400 mm | |
| STD. TURNING DIA. | 200 mm | |
| MAIN SPINDLE | ||
| SPINDLE NOSE | A2-6 | |
| BORE THROUGH SPINDLE | 55 mm | |
| BAR CAPACITY | 42 mm | |
| CHUCK SIZE | 200 mm | |
| FRONT BEARING BORE | 90 mm | |
| SPINDLE DRIVE | ||
| SPINDLE MOTOR POWER (CONT./15 MIN.) | 7.5 / 11 KW | |
| SPEED RANGE (RPM) | 1000-3500 | |
| AXES SLIDES | ||
| X AXIS STROKE | 170 mm | |
| Z AXIS STROKE | 525 mm | |
| RAPID TRAVERSE: X-AXIS | 24 M/Min. | |
| RAPID TRAVERSE: Z-AXIS | 24 M/Min. | |
| TAIL STOCK | ||
| QUILL DIAMETER | 80 mm | |
| QUILL STROKE | 100 mm | |
| TAPER IN QUILL | MT4 | |
| TURRET | ||
| TURRET TYPE | Ele. Mech/Hyd. | |
| TURRET MODEL | BTP 80 | |
| NO. OF STATIONS | 8 | |
| MAX. BORING BAR DIA. | 40 | |
| TOOL CROSS SECTION | 25 mm | |
| ACCURACY | ||
| POSITION ACCURACY | 0.015 mm | |
| REPEATABILITY | ± 0.003 mm | |
| CONTROL SYSTEM | ||
| Siemens 828D / Fanuc Oi Mate TD | ||
* Specifications subject to change. Contact us for the latest datasheet and custom configurations.
* Refer Disclaimer policy for more details.
