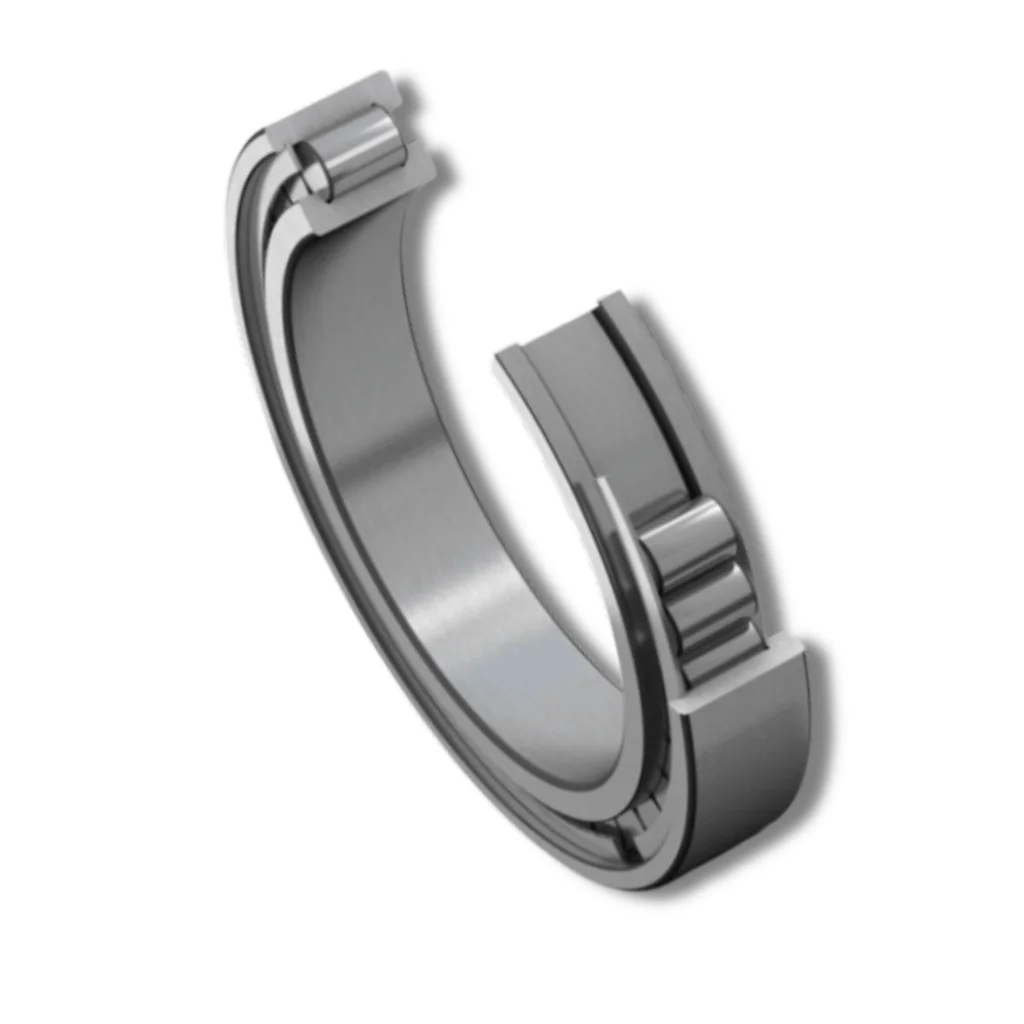

Single Row Full Complement Cylindrical Roller Bearings (Type NCF)

PMK Single Row Full Complement Cylindrical Roller Bearings (Type NCF) are designed to maximize load capacity within a compact design. These bearings contain the maximum possible number of rollers, allowing them to support very high radial loads at low to moderate speeds.

The single-row full complement configuration eliminates the need for a cage, offering higher rigidity and load-bearing capability.

Key benefits

Extremely high radial load capacity due to full complement design.
Compact design ideal for limited-space applications.
High stiffness and rigidity for accurate shaft support.
Designed for applications with lower speed and oscillating movement.
Long life through optimized roller raceway contact.

Applications

Industrial gearboxes and reducers.
Heavy-duty electric motors.
Paper, steel, and mining machinery.
Linear motion and heavy press systems.

Request Quote (RFQ)

Specifications

Specifications

Boundary dimensions (mm)						Basic load ratings (kN)		Designations	Mass kg	Limiting speeds (r/min)
d	D	B	r_{1, 2min}	r_{3, 4min}	E_w	C_r	C_or	Designations	Mass kg	Grease	Oil
150	210	36	2	1.1	195.5	289	505	NCF2930V	3.7	670	1400
150	225	56	2.1	1.1	211.7	460	710	NCF3030V	7.1	630	1300
160	220	36	2	1.1	205.7	310	535	NCF2932V	3.8	630	1300
160	240	60	2.1	1.1	225.1	520	810	NCF3032V	8.6	600	1200
170	215	22	1.5	1.1	203.5	149	272	NCF1834V	1.8	600	1200
	230	36	2	1.1	216	320	570	NCF2934V	4.1	600	1200
	260	67	2.1	1.1	243.2	675	1070	NCF3034V	11.9	560	1100
180	225	22	1.1	1	215.2	154	290	NCF1836V	1.8	600	1200
	250	42	2	1.1	232	390	695	NCF2936V	6.0	560	1100
	280	74	2.1	2.1	260.5	785	1260	NCF3036V	15.8	560	1100
190	240	24	1.5	1.1	229	178	335	NCF1838V	2.4	560	1100
	260	42	2	1.1	244	435	785	NCF2938V	6.5	560	1100
	290	75	2.1	2.1	270	805	1320	NCF3038V	16.7	530	1000
200	250	24	1.5	1.1	237.5	193	356	NCF1840V	2.5	560	1100
	280	48	2.1	1.5	262	530	955	NCF2940V	8.9	530	1000
	310	82	2.1	2.1	288.2	910	1510	NCF3040V	21.4	500	950
220	270	24	1.5	1.1	258	191	385	NCF1844V	2.7	530	1000
	300	48	2.1	1.5	283	555	1050	NCF2944V	9.6	480	900
	340	90	3	3	312.7	1100	1820	NCF3044V	28.2	450	850
240	300	28	2	1.1	287	236	470	NCF1848V	4.2	480	900
	320	48	2.1	1.5	303	580	1140	NCF2948V	10.4	450	850
	360	92	3	3	335.25	1350	2490	NCF3048V	31.2	430	800
260	320	28	2	1.1	307.2	247	510	NCF1852V	4.5	430	800
	360	60	2.1	1.5	333.7	750	1460	NCF2952V	18.1	400	750
	400	104	4	4	376.1	1740	2960	NCF3052V	45.3	380	700
280	350	33	2	1.1	334	330	675	NCF1856V	6.8	400	750
	380	60	2.1	1.5	358.8	814	1750	NCF2956V	19.5	380	700
	420	106	4	4	390.5	1740	3110	NCF3056V	49	360	670
300	380	38	2.1	1.5	363	445	870	NCF1860V	9.7	360	670
	420	72	3	3	385	805	1730	NCF2960V	30.7	340	630
	460	118	4	4	432	1980	3500	NCF3060V	67.6	320	600
320	400	38	2.1	1.5	383	460	925	NCF1864V	10.3	340	630
	440	72	3	3	411	1150	2340	NCF2964V	33	320	600
	480	121	4	4	447.3	2170	3900	NCF3064V	73	300	560
340	420	38	2.1	1.5	401	475	985	NCF1868V	10.7	320	600
	460	72	3	3	431	1190	2470	NCF2968V	34.1	300	560
	520	133	5	5	486	2480	4350	NCF3068V	97	280	530
360	440	38	2.1	1.5	423.2	562	1180	NCF1872V	11.5	300	560
	480	72	3	3	451.5	1220	2610	NCF2972V	36	280	530
	540	134	5	5	503.2	2550	4600	NCF3072V	102	260	500
380	480	46	2.1	1.5	458	575	1230	NCF1876V	18.6	280	530
	520	82	4	4	486.7	1480	3210	NCF2976V	52	260	500
	560	135	5	5	520.5	2610	4800	NCF3076V	108	240	480
400	500	46	2.1	1.5	475	590	1300	NCF1880V	19.5	260	500
	540	82	4	4	511	1650	3550	NCF2980V	53.4	240	480
	600	148	5	5	559.1	2940	5450	NCF3080V	139	220	450
420	520	46	2.1	1.5	499	600	1340	NCF1884V	20.5	240	480
	560	82	4	4	524	1740	3590	NCF2984V	55.7	220	450
	620	150	5	5	578.2	3000	5650	NCF3084V	147	200	430
440	540	46	2.1	1.5	516	615	1410	NCF1888V	21.3	220	450
440	600	95	4	4	565.5	2100	4160	NCF2988V	78.2	200	430
460	580	56	3	3	553	920	1950	NCF1892V	32.5	200	430
460	620	95	4	4	579	2130	4480	NCF2992V	81.2	190	400
480	600	56	3	3	573.5	940	2040	NCF1896V	33.8	190	400
480	650	100	5	5	606	2380	5100	NCF2996V	95.1	180	380
500	620	56	3	3	594	1030	2200	NCF18/500V	35	180	380
500	670	100	5	5	634.5	2422	5250	NCF29/500V	98.4	170	360
530	650	56	3	3	624.5	990	2240	NCF18/530V	36.9	170	360
560	680	56	3	3	655	1020	2360	NCF18/560V	39.3	160	340
600	730	60	3	3	696	1140	2680	NCF18/600V	48.9	150	320
630	780	69	4	4	739	1470	3400	NCF18/630V	68.8	140	300
670	820	69	4	4	783	1520	3550	NCF18/670V	72.7	130	280
670	820	88	4	4	783	2040	5340	NCF28/670V	90.8	130	280
710	870	74	4	4	831	1670	3900	NCF18/710V	79.7	120	260
750	920	78	5	5	880	1890	4430	NCF18/750V	94.6	110	240
750	920	100	5	5	880	2630	6790	NCF28/750V	130	110	240
800	980	82	5	5	936	2070	4930	NCF18/800V	113	100	220
900	1090	85	5	5	1044	2390	5900	NCF18/900V	139	90	190
1000	1220	100	6	6	1165	3110	7640	NCF18/1000V	209	75	160
